M80-4T10805F1-02-321-00-000

Headers, Receptacles, Female Sockets Overview

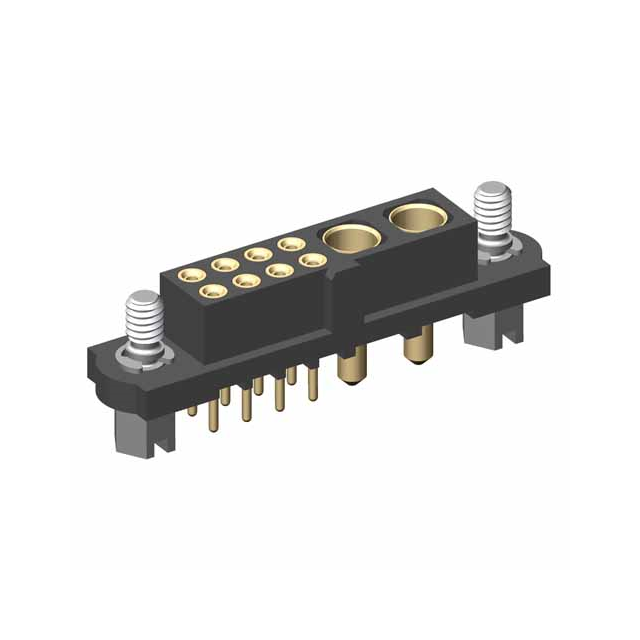

The M80-4T10805F1-02-321-00-000 is a female board connector from the Harwin Datamate Mix-Tek series. It features a vertical orientation with solder terminals and a locking mechanism. The housing is constructed from black glass-filled polyphenylene sulfide (PPS). Electrical ratings include a current capacity of 3A and a voltage rating of 800VAC/DC. Contact materials consist of beryllium copper with gold plating, ensuring a contact resistance of 25 mΩ. The unit supports 500 mating cycles and offers an insulation resistance of 100,000,000 Ω.

Headers, Receptacles, Female Sockets Feature Summary

• Vertical board mount configuration with integrated locking for secure installation
• Mixed technology capability allowing combination of signal and power contacts
• High voltage insulation using glass-filled polyphenylene sulfide material

Headers, Receptacles, Female Sockets Applications

• Power distribution within electronic assemblies
• Signal transmission in mixed-technology environments
• Industrial control system interconnections

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix to confirm terminal plating type, as variations exist between tin/lead and gold finishes within this product family. Ensure the selected variant matches the required environmental compliance standards, such as RoHS status, which may differ based on the exact suffix configuration. Cross-reference the datasheet to confirm the precise contact arrangement and housing dimensions before procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a vertical female connector with high voltage isolation is required. The Datamate Mix-Tek series allows for mixed signal and power configurations, making it suitable for complex circuit boards. Verify that the 3A current rating and 800VAC/DC voltage limits align with the application's electrical demands. Consider the locking feature if vibration resistance is necessary for the deployment environment.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Harwin Datamate Mix-Tek semi-custom connector system. The series is designed for applications requiring flexible combinations of signal and power contacts. The M80 prefix indicates the specific housing style within the broader connector ecosystem. This particular model represents a female plug variant intended for board-to-board or cable-to-board connections.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes are not explicitly documented in the provided source data. When evaluating alternatives, ensure compatibility with the 4mm pitch and mixed technology requirements. Verify that replacement connectors maintain similar voltage ratings and locking mechanisms to preserve assembly integrity.
