M80-4T11205F1-04-321-00-000

Headers, Receptacles, Female Sockets Overview

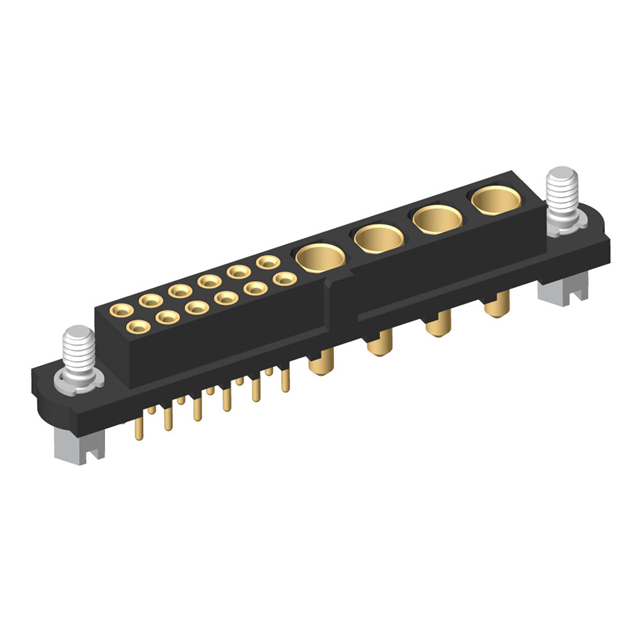

The M80-4T11205F1-04-321-00-000 is a Datamate Mix-Tek vertical through-board receptacle connector manufactured by Harwin. It features a 16-position configuration with a 2mm pitch, designed for high-density applications. The unit includes mixed signal and coaxial contacts, utilizing gold plating on the mating surfaces to ensure reliable conductivity. Constructed with a robust housing, this component supports vertical PCB mounting, facilitating efficient space utilization in compact electronic assemblies while maintaining secure electrical connections.

Headers, Receptacles, Female Sockets Feature Summary

• Vertical through-board mounting design for space-efficient assembly
• Mixed-signal architecture combining standard signal and coaxial contacts
• Gold-plated contact interfaces for enhanced conductivity and durability

Headers, Receptacles, Female Sockets Applications

• High-density electronic modules requiring mixed signal and RF transmission
• Compact industrial control systems with vertical board constraints
• Telecommunications equipment needing reliable coaxial interconnects

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific pinout configuration and coaxial impedance requirements against your schematic before ordering. Confirm that the vertical orientation matches your PCB layout constraints. Ensure compatibility with mating plugs from the same Datamate series. Check for any updated environmental compliance declarations if required by your supply chain standards.

Headers, Receptacles, Female Sockets Selection Notes

Choose this connector when vertical mounting is necessary to save board space. Select this model specifically for applications requiring integrated coaxial lines alongside standard signals. Consider the 2mm pitch density for high-pin-count needs in limited areas. Verify that the gold plating meets your corrosion resistance specifications.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Harwin Datamate Mix-Tek family, which specializes in mixed-signal connectivity solutions. The series allows designers to combine various contact types within a single housing. This specific variant focuses on vertical installation, distinguishing it from straight or surface-mount alternatives in the broader product line.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must match the 16-position count, vertical orientation, and mixed signal/coaxial layout. Verify that any alternative maintains the 2mm pitch and compatible locking mechanisms. Cross-reference mating plug availability to ensure system interoperability without redesigning the enclosure.
