M80-4T13442FD

Headers, Receptacles, Female Sockets Overview

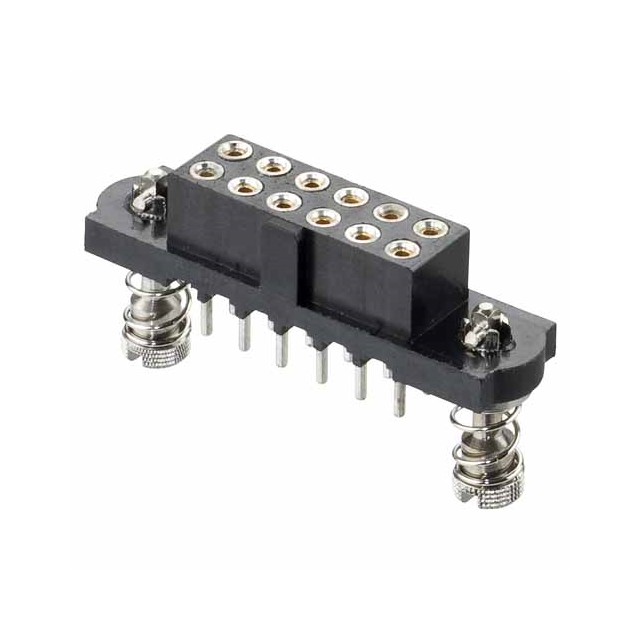

The M80-4T13442FD is a board connector plug featuring female contacts with straight solder terminals. It utilizes a locking mechanism and jack screws for secure installation. The insulator is black glass-filled polyphenylene sulfide, while contacts are beryllium copper with gold mating and tin termination finishes. Electrical specifications include a contact resistance of 25 mΩ, insulation resistance of 100,000,000 Ω, and durability of 500 cycles. Operating temperature ranges from -55°C to +125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Straight mounting configuration with integrated locking and jack screw options
• Gold-plated female contacts paired with tin-terminated solder connections
• High-performance black glass-filled polyphenylene sulfide insulator

Headers, Receptacles, Female Sockets Applications

• Automotive electronic systems
• General purpose industrial interconnects
• Military equipment interfaces

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix against official Harwin documentation to confirm pin count and length variations. Ensure compatibility with mating header assemblies by checking row spacing and contact gender alignment. Confirm regulatory compliance status such as REACH or RoHS directly through manufacturer channels prior to procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component for applications requiring robust mechanical retention via jack screws. Verify that the operating environment stays within the specified -55°C to +125°C range. Ensure PCB layout accommodates the straight solder terminal profile and required locking clearance.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Harwin M80 series, designed for high-reliability interconnect solutions. The series supports mixed contact configurations and offers various housing lengths to accommodate different circuit densities. It serves as a standardized solution for demanding environments requiring durable board-to-board connections.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with Harwin engineering for potential equivalents if availability is constrained.
