M80-4T15042F3

Headers, Receptacles, Female Sockets Overview

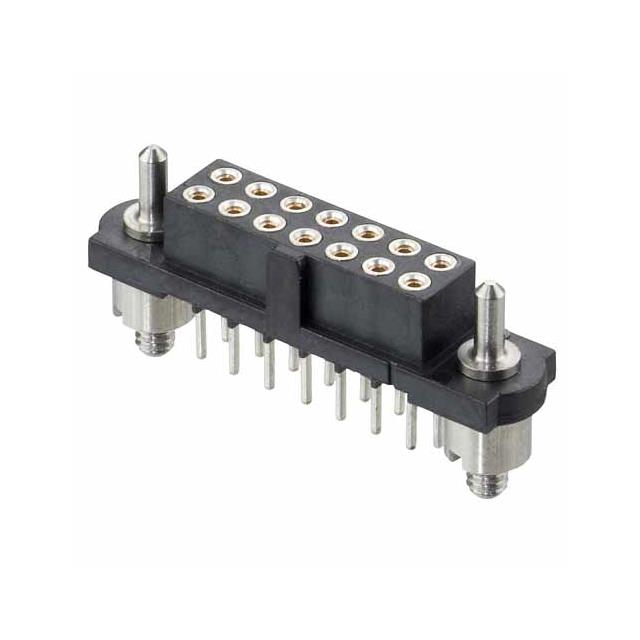

The M80-4T15042F3 is a female board connector from the Harwin Datamate J-Tek series, designed for vertical through-board solder termination. It features a locking mechanism and black insulator constructed from glass-filled polyphenylene sulphide. The component utilizes beryllium copper contacts with gold mating finishes and tin tail plating. Key electrical parameters include a contact resistance of 25 mΩ and an insulation resistance of 100,000,000 Ω. It supports a durability of 500 cycles and operates within a temperature range of -55 °C to 125 °C.

Headers, Receptacles, Female Sockets Feature Summary

• Vertical straight mounting configuration for direct PCB integration
• Locking housing design ensures secure connection stability
• Gold-plated contact surfaces provide reliable signal transmission
• High-temperature resistant polymer insulator material

Headers, Receptacles, Female Sockets Applications

• Industrial control systems requiring high reliability
• Medical electronic equipment for critical operations
• Energy and oil & gas field applications
• Electric vehicle power distribution modules

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific pin count and pitch requirements against the target PCB layout before ordering. Confirm that the vertical orientation matches the assembly constraints. Ensure compatibility with the corresponding male header components from the same Datamate J-Tek family. Check RoHS compliance status if required by project specifications. Validate thermal ratings against the operating environment conditions.

Headers, Receptacles, Female Sockets Selection Notes

Choose this model for applications demanding robust mechanical locking and vertical space efficiency. The 2mm pitch allows for dense circuit board layouts while maintaining high current carrying capacity. Consider the gold finish for environments prone to corrosion or requiring low contact resistance. Evaluate the 500-cycle durability against expected maintenance frequencies. Assess the glass-filled PPS insulator for superior heat dissipation needs.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Harwin Datamate M80 series, known for high-reliability interconnect solutions. The series offers various configurations including surface mount and right-angle options. The M80-4T15042F3 specifically addresses vertical mounting needs with a 50-position socket configuration. It complements the broader ecosystem of compatible headers and backshells.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes are limited due to the proprietary locking mechanism and specific pitch dimensions. Verify cross-compatibility with other manufacturers' 2mm pitch connectors only if mechanical locking features can be replicated externally. Consult Harwin engineering for approved alternative part numbers within the M80 or M83 families.

Headers, Receptacles, Female Sockets FAQ

What is the contact gender for this connector?

The M80-4T15042F3 is a female socket connector designed to mate with male pins.

Is the connector polarized?

Yes, the housing is polarized to prevent incorrect mating orientation.

What is the maximum operating temperature?

The maximum operating temperature is 125 °C.
