M80-5000000M1-02-331-00-000

Headers, Male Pins Overview

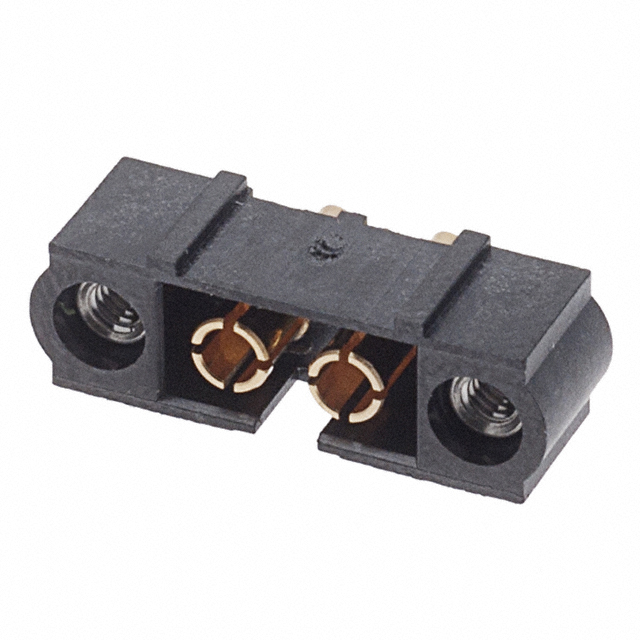

The M80-5000000M1-02-331-00-000 is a rectangular cable assembly manufactured by Harwin. This single-ended component features a female socket connector at Port A with two positions. The cable length is specified as 3 meters, constructed using 16 AWG wire gauge. Port B terminates without an additional connector, resulting in stripped leads. The assembly utilizes a black insulator and is designed for reliable signal transmission within electronic systems requiring fixed-length interconnects.

Headers, Male Pins Feature Summary

• Single-ended configuration with a female socket interface
• Fixed 3-meter cable length with 16 AWG conductors
• Stripped lead termination at the opposite end

Headers, Male Pins Applications

• Internal electronic equipment wiring
• Signal transmission between circuit boards
• Custom interconnect solutions

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to ensure correct cable length and pin count compatibility. Confirm that the manufacturer's current production status aligns with project timelines, as this item may be subject to special order requirements. Cross-reference the datasheet to validate insulation material and temperature ratings against environmental constraints before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a fixed-length, single-ended connection is required. Ensure the 16 AWG conductor size meets the current carrying capacity needs of the application. Verify that the female socket gender matches the mating male header. Consider the 3-meter length constraint and whether stripped leads are suitable for the target connection point.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek series of rectangular connectors from Harwin. It is designed for high-reliability applications requiring robust mechanical locking. The series supports various configurations including board-to-board and cable assemblies, offering options for different pin counts and termination styles to suit diverse electronic design requirements.

Headers, Male Pins Replacement Considerations

Check for exact suffix matches in the Datamate J-Tek family. Verify that any substitute maintains the same 2-position count, 16 AWG gauge, and 3-meter length. Ensure the replacement retains the female socket gender and stripped lead termination style to guarantee physical and electrical compatibility.
