M80-5000000M1-02-PM1-00-000

Headers, Male Pins Overview

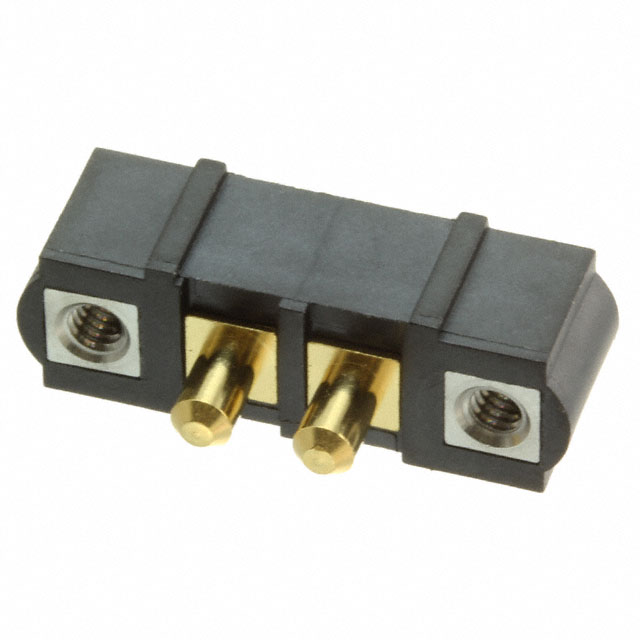

The M80-5000000M1-02-PM1-00-000 is a Datamate Mix-Tek male cable connector from Harwin, designed for power-to-board applications. It features two high-power contacts rated for 40A at 800V. The connector utilizes a keying slot and mating flange for secure alignment. It is constructed with durable materials suitable for demanding environments, ensuring reliable electrical connections in high-load scenarios.

Headers, Male Pins Feature Summary

• High current capacity of 40A and voltage rating of 800V for robust power delivery
• Datamate Mix-Tek series design ensures durability under vibration, shock, and acceleration
• Includes keying slot and mating flange to prevent misalignment during connection

Headers, Male Pins Applications

• Power supply interconnections in industrial equipment
• High-current connections in automotive systems
• Power distribution units requiring reliable board-to-cable interfaces

Headers, Male Pins Procurement Notes

Verify the specific contact configuration and housing material against the official Harwin datasheet before procurement. Ensure that the mating connector matches the Datamate Mix-Tek series specifications. Confirm environmental ratings align with the intended application conditions. Cross-reference the part number suffixes to ensure correct jack screw or guide pin options are included as required by the assembly design.

Headers, Male Pins Selection Notes

Select this component when high power density is required in a compact form factor. The Datamate Mix-Tek series offers superior retention force compared to standard connectors. Consider the operating temperature range and mechanical stress factors. Verify compatibility with existing PCB layouts and cable harness designs. Ensure the selected variant meets all safety and regulatory standards for the target market.

Headers, Male Pins Part Context

This part belongs to the Datamate Mix-Tek family, known for high reliability in harsh environments. The M80 series provides modular solutions for power and signal transmission. Harwin's four-finger beryllium copper contacts ensure consistent performance over multiple mating cycles. This specific model focuses on high-power applications within the broader connector ecosystem.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement should only be considered if the exact electrical and mechanical specifications match. Consult Harwin engineering for potential alternatives if this specific configuration is unavailable.
