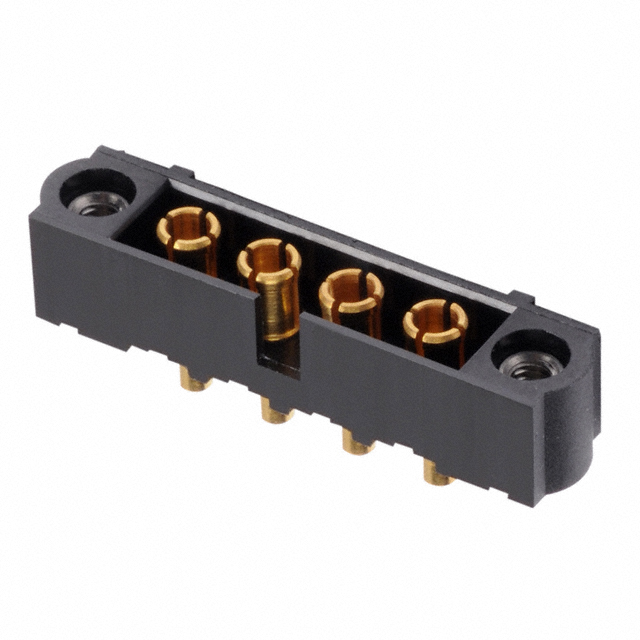

M80-5000000M1-04-331-00-000 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 4POS 4MM. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for M80-5000000M1-04-331-00-000
- Description：CONN HEADER VERT 4POS 4MM
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin, Power
- Pitch - Mating：0.157" (4.00mm)
- Number of Positions：4
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：10.0µin (0.25µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：20A
- Voltage Rating：800V
Headers, Male Pins datasheet and documents for M80-5000000M1-04-331-00-000
Headers, Male Pins Overview
The M80-5000000M1-04-331-00-000 is a Datamate J-Tek series power connector manufactured by Harwin. It features a 4-position female socket configuration with a 2 mm pitch. The component utilizes gold-plated beryllium copper contacts housed in black polyphenylene sulfide (PPS). Rated for 3 A current and 800 VAC/DC voltage, it supports vertical through-board mounting via solder pins. Operating temperatures range from -55 C to +125 C, ensuring reliability in demanding electronic applications.
Headers, Male Pins Feature Summary
- High-reliability Datamate J-Tek interconnect system
- Gold-plated beryllium copper contacts for durability
- Vertical through-board solder pin termination
- Robust PPS housing material
Headers, Male Pins Applications
- Power distribution modules
- Industrial control systems
- Telecommunications equipment
- Automotive electronics
Headers, Male Pins Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact plating thickness and housing color options. Ensure compatibility with mating male headers within the same Datamate J-Tek family. Confirm RoHS compliance status and REACH SVHC declarations prior to final procurement decisions.
Headers, Male Pins Selection Notes
Select this component for applications requiring high current density in compact spaces. The 2 mm pitch allows for dense board layouts while maintaining robust electrical connections. Consider the vertical orientation for standard PCB assembly processes. Verify that the 3 A rating meets the specific circuit load requirements.
Headers, Male Pins Part Context
This part belongs to the Harwin Datamate J-Tek family, designed for high-reliability power and signal interconnections. The series is known for its secure latching mechanisms and resistance to vibration. It serves as a critical interface between power sources and printed circuit boards in various industrial sectors.
Headers, Male Pins Replacement Considerations
No public confirmed substitute part numbers are available.
