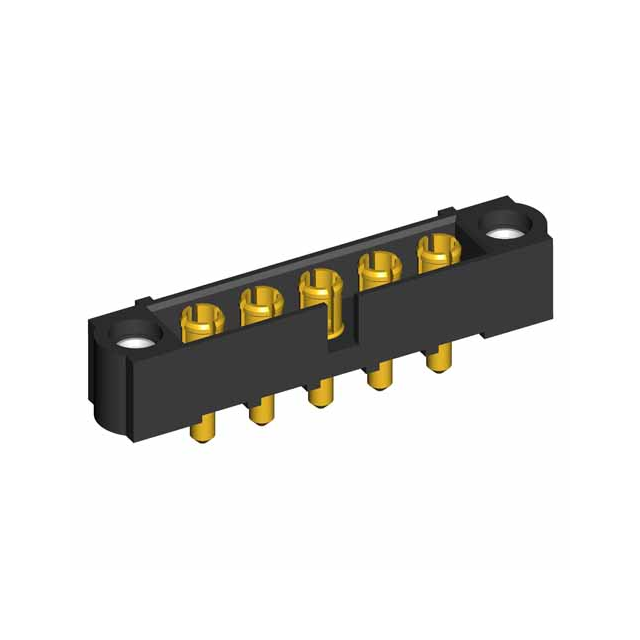

M80-5000000M1-05-331-00-000 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 5POS 4MM. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for M80-5000000M1-05-331-00-000
- Description：CONN HEADER VERT 5POS 4MM
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin, Power
- Pitch - Mating：0.157" (4.00mm)
- Number of Positions：5
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：10.0µin (0.25µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：20A
- Voltage Rating：800V
Headers, Male Pins datasheet and documents for M80-5000000M1-05-331-00-000
Headers, Male Pins Overview
The M80-5000000M1-05-331-00-000 is a Datamate J-Tek series board connector manufactured by Harwin. It features a 5-position female socket configuration with straight solder terminals designed for through-hole mounting on printed circuit boards. The connector utilizes a Polyphenylene Sulfide (PPS) insulator and brass contacts with gold plating to ensure reliable signal transmission in high-reliability applications.
Headers, Male Pins Feature Summary
- Datamate J-Tek series interconnect system
- Female socket contact arrangement
- Straight through-hole solder termination
- Gold-plated brass electrical contacts
Headers, Male Pins Applications
- High-reliability electronic assemblies
- Industrial control systems
- Aerospace instrumentation
- Medical device interfaces
Headers, Male Pins Procurement Notes
Verify the specific ordering suffix against the official Harwin datasheet to confirm terminal style, contact material, and insulation color. Ensure compatibility with mating male pins from the same Datamate family. Confirm RoHS compliance status via the manufacturer's declaration before procurement.
Headers, Male Pins Selection Notes
Select this component for applications requiring robust through-hole connectivity with high cycle durability. Evaluate the 2mm pitch constraints against available PCB real estate. Consider the straight orientation for panel or direct board mounting scenarios where cable routing directionality is fixed.
Headers, Male Pins Part Context
This part belongs to the Harwin Datamate J-Tek line, known for its latching mechanism and high vibration resistance. It serves as a critical interface element within mixed-signal power and data transmission modules, offering a compact footprint relative to traditional D-sub connectors.
Headers, Male Pins Replacement Considerations
No public confirmed substitute part numbers are available. Cross-reference with other Harwin Datamate variants only if pin count and termination style match exactly.
