M80-5000000M1-06-PM1-00-000

Headers, Male Pins Overview

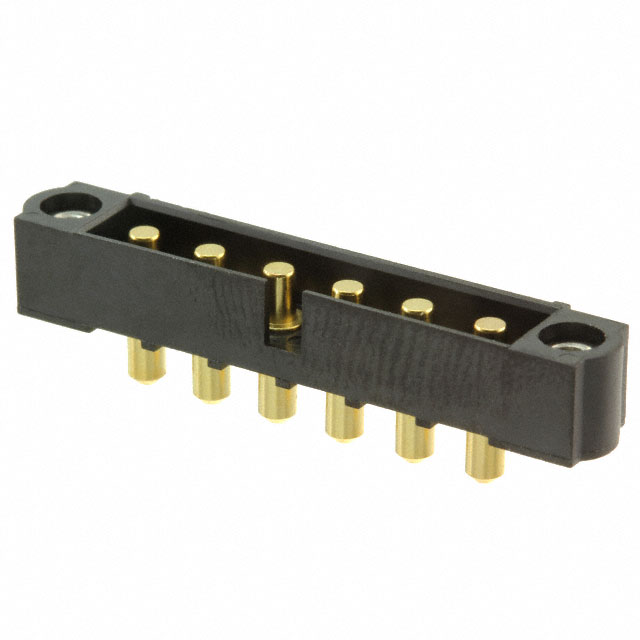

The Harwin M80-5000000M1-06-PM1-00-000 is a Datamate Mix-Tek male cable connector designed for power-to-the-board applications. It features six 18 AWG power contacts and includes jackscrews for secure mating. The connector utilizes a 4.00 mm pitch with a single row of through-hole straight pins. Constructed with copper alloy contacts, it supports an 800V voltage rating. The housing material ensures durability in industrial environments.

Headers, Male Pins Feature Summary

• High-power capability with dedicated large-gauge contact configuration
• Integrated jackscrew mechanism for robust mechanical retention
• Single-row vertical board-to-cable interface design

Headers, Male Pins Applications

• Industrial control systems requiring high current transmission
• Power distribution units within compact enclosures
• Heavy-duty machinery interconnects

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm the inclusion of jackscrews and the exact pin configuration. Ensure the mating counterpart matches the 4.00 mm pitch requirement. Cross-reference the datasheet for insulation resistance values and operating temperature ranges before finalizing component selection for critical power paths.

Headers, Male Pins Selection Notes

Select this connector when high voltage isolation and secure mechanical locking are required. The 4.00 mm pitch allows for substantial current carrying capacity compared to smaller pitches. Consider the through-hole mounting style for boards requiring high mechanical strength during mating cycles.

Headers, Male Pins Part Context

This component belongs to the Datamate Mix-Tek series by Harwin, specialized for mixed signal and power applications. The Mix-Tek line distinguishes itself by accommodating larger wire gauges within standard connector footprints, making it suitable for demanding power delivery scenarios in space-constrained designs.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed. Alternative solutions must match the 4.00 mm pitch, 6-position count, and jackscrew feature set. Verify compatibility with existing mating housings and PCB footprint dimensions before substitution.
