M80-5000000M1-08-PM1-00-000

Headers, Male Pins Overview

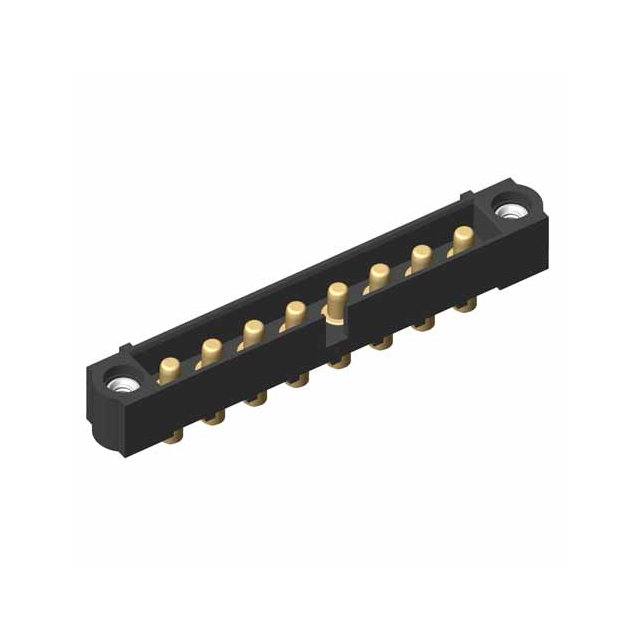

The M80-5000000M1-08-PM1-00-000 is a Datamate Mix-Tek male cable connector manufactured by Harwin. It belongs to the Power to the Board category and features pin contacts designed for 18 AWG wire gauges. The component utilizes a crimp termination method and is constructed with a black polyamide housing. This connector supports vertical board mount installation angles and operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• Mixed signal and power contact configuration within the Datamate Mix-Tek series
• Vertical board mount orientation for space-efficient assembly
• Crimp termination style ensuring reliable electrical connections
• Polyamide housing material providing thermal stability up to 125°C

Headers, Male Pins Applications

• Industrial control systems requiring mixed signal and power transmission
• Automotive electronic modules needing robust cable-to-board connections
• Medical equipment utilizing high-reliability interconnects
• Test and measurement instrumentation interfaces

Headers, Male Pins Procurement Notes

Verify the specific contact arrangement and pin count against official Harwin documentation before procurement. Confirm that the selected variant matches the required wire gauge and termination type. Ensure compatibility with mating sockets in the same Datamate family. Check for any RoHS or REACH compliance requirements relevant to your region. Validate the operating temperature range against your application environment.

Headers, Male Pins Selection Notes

Select this connector when a mixed signal and power solution is required in a compact form factor. Consider the vertical mounting option if panel space is limited. Ensure the 18 AWG wire gauge capability aligns with your harness design. Verify that the crimp termination process is supported by your manufacturing equipment. Compare against other Datamate variants to ensure optimal contact density for your specific needs.

Headers, Male Pins Part Context

This component is part of the broader Datamate Mix-Tek product line from Harwin, which specializes in mixed-signal connectivity solutions. The series combines signal and power contacts in a single housing to simplify system integration. The M80 prefix indicates a standard connector housing configuration. This specific model represents a male cable connector variant designed for direct wiring applications.

Headers, Male Pins Replacement Considerations

Direct replacements must maintain identical contact arrangements and housing dimensions. Verify that substitute parts support the same 18 AWG wire gauge and crimp termination. Ensure the replacement maintains the vertical board mount orientation. Cross-reference with Harwin's official substitution guide for compatible alternatives.
