M80-5000000M1-10-331-00-000

Headers, Male Pins Overview

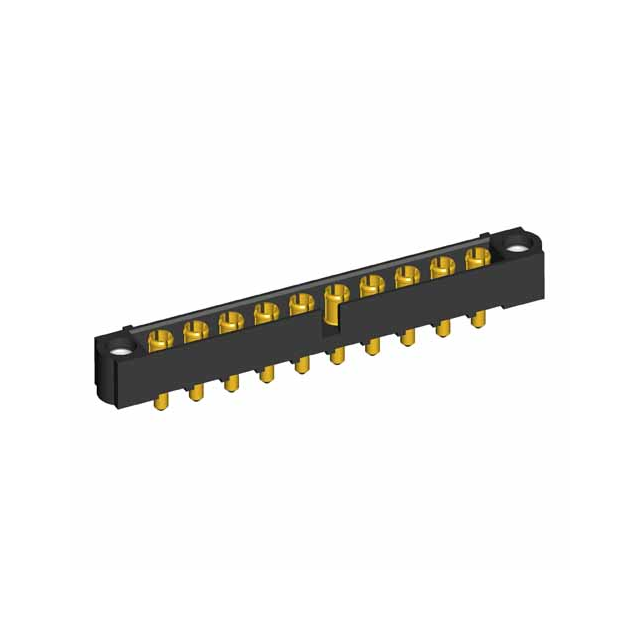

The M80-5000000M1-10-331-00-000 is a Datamate Mix-Tek male vertical throughboard connector manufactured by Harwin. It features a 10-position configuration with jackscrews for secure mating. The component utilizes a 2 mm pitch and is designed for surface mount or through-hole termination. It belongs to the Power to the Board series, providing robust electrical connections in high-reliability applications.

Headers, Male Pins Feature Summary

• Vertical male contact orientation for direct board mounting
• Integrated jackscrew mechanism ensures positive locking engagement
• Mix-Tek architecture supports mixed signal and power configurations

Headers, Male Pins Applications

• Industrial control systems requiring secure interconnects
• Power distribution modules within electronic assemblies
• High-vibration environments needing locked connector solutions

Headers, Male Pins Procurement Notes

Verify the specific pinout configuration against official Harwin documentation before integration. Confirm that the jackscrew style matches the mating panel requirements. Ensure the vertical height specifications align with the target enclosure constraints. Cross-reference the termination type with the printed circuit board design files to guarantee compatibility.

Headers, Male Pins Selection Notes

Select this part when a vertical male connector with mechanical locking is required. The Mix-Tek series allows for flexible contact arrangements. Consider the current rating and voltage limits relative to the application load. Evaluate the available stacking heights to ensure proper clearance within the assembly.

Headers, Male Pins Part Context

This component is part of the Harwin Datamate family, known for high-density interconnects. The M80 series specifically targets demanding industrial and aerospace sectors. It offers a balance of compact size and high reliability. The Mix-Tek variant provides versatility in combining different contact types.
