M80-5000000M2-02-331-00-000

Headers, Male Pins Overview

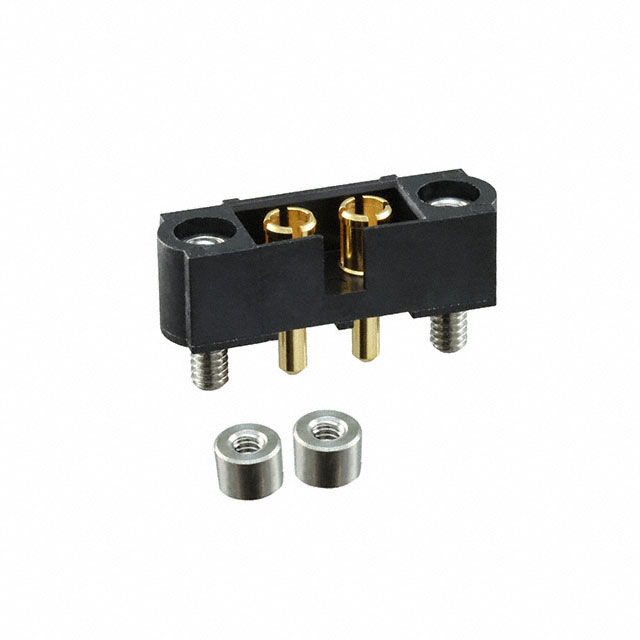

The M80-5000000M2-02-331-00-000 is a Datamate Mix-Tek pin header manufactured by Harwin. It features a 2-position configuration with a 4.00mm pitch and single row arrangement. Designed for through-hole mounting, this component utilizes solder pin termination to ensure secure board attachment. The connector is part of the high-reliability Datamate series, engineered for robust performance in demanding electronic applications requiring stable power or signal transmission.

Headers, Male Pins Feature Summary

• Datamate Mix-Tek series design for high reliability
• Through-hole mounting style for secure PCB integration
• Solder pin termination method

Headers, Male Pins Applications

• Industrial control systems
• Automotive electronics
• Test and measurement equipment

Headers, Male Pins Procurement Notes

Verify the specific ordering suffixes against the official Harwin datasheet to confirm pin count, pitch, and termination type. Ensure compatibility with mating connectors within the Datamate Mix-Tek family. Confirm that the through-hole footprint matches the target PCB design requirements before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a low-profile, high-reliability interconnect solution is required for through-hole assembly. The 4.00mm pitch offers spacing advantages over smaller pitches. Consider the Datamate Mix-Tek locking mechanism if vibration resistance is critical for the application environment.

Headers, Male Pins Part Context

This part belongs to the Datamate M80 series, which includes both 2.00mm and 4.00mm pitch options. The Mix-Tek variant combines different contact sizes to accommodate mixed signal and power needs within a single connector system. This specific model represents a standard pin header variant within that extensive ecosystem.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2-position count, 4.00mm pitch, and through-hole termination. Verify mating interface compatibility with existing Datamate Mix-Tek sockets. Alternative parts from other manufacturers require careful mechanical and electrical verification.
