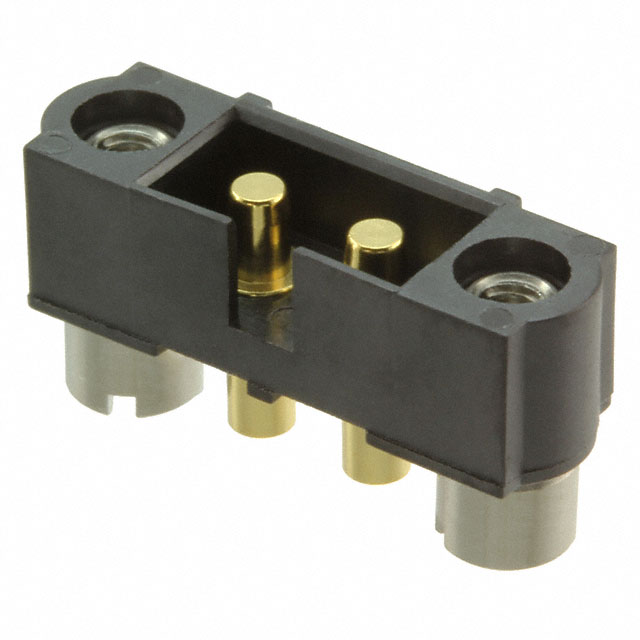

M80-5000000M2-02-PM1-00-000

$23.09

Description：CONN HEADER VERT 2POS 4MM
Series：Datamate Mix-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:9210f9c82f01 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M80-5000000M2-02-PM1-00-000 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 2POS 4MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M80-5000000M2-02-PM1-00-000

Description：CONN HEADER VERT 2POS 4MM
Series：Datamate Mix-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin, Power
Pitch - Mating：0.157" (4.00mm)
Number of Positions：2
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Threaded
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.220" (5.60mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：30.0µin (0.76µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：40A
Voltage Rating：800V

Headers, Male Pins datasheet and documents for M80-5000000M2-02-PM1-00-000

M80-5000000M2-02-PM1-00-000

Headers, Male Pins Overview

The Harwin M80-5000000M2-02-PM1-00-000 is a Datamate Mix-Tek male plug connector designed for power-to-board applications. It features a single row with two high-power contacts rated for 40A current. The component utilizes through-hole termination with a 3.5mm PCB height and a 4mm pitch. Gold plating ensures reliable conductivity on contact areas.

Headers, Male Pins Feature Summary

High-current capability with 40A rating per contact
Gold-plated contact surfaces for enhanced reliability
Single-row vertical through-board mounting design

Headers, Male Pins Applications

Industrial power distribution systems
High-current board-to-board interconnects
Power supply input connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact count, pitch, and termination style match the target PCB layout. Confirm that the 3.5mm board thickness requirement aligns with the assembly specifications. Ensure the 40A current rating is sufficient for the intended circuit load under operating conditions.

Headers, Male Pins Selection Notes

Select this component when high current density is required in a compact form factor. The Mix-Tek series offers mixed signal and power options, but this specific part is dedicated to power. Consider the vertical orientation and through-hole process compatibility during the mechanical design phase.

Headers, Male Pins Part Context

This part belongs to the Datamate Mix-Tek family, which combines signal and power contacts in modular configurations. The M80 series is known for its robustness and high-density capabilities. This specific item focuses exclusively on power delivery within that ecosystem.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Harwin M80-5000000 variants with different contact counts or pitches. Cross-brand replacements require matching the 4mm pitch, 40A rating, and vertical through-hole termination profile.
