M80-5000000M2-04-331-00-000

Headers, Male Pins Overview

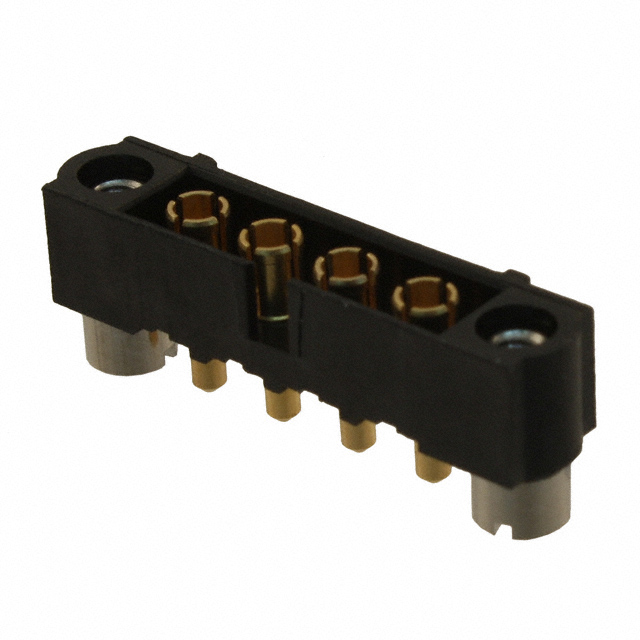

The M80-5000000M2-04-331-00-000 is a vertical header connector from the Harwin Datamate Mix-Tek series. It features a 4-position configuration with a 4.00mm pitch, designed for through-hole mounting. The component supports a current rating of 20A and a voltage rating of 800V AC/DC. Constructed with black Polyphenylene Sulfide (PPS) insulation rated UL94 V-0, it utilizes beryllium copper contacts with gold plating. The unit includes a mating flange and keying slot for secure assembly.

Headers, Male Pins Feature Summary

• High-reliability design within the Datamate Mix-Tek family
• Through-hole termination for robust board attachment
• Integrated mounting flange and keying mechanism

Headers, Male Pins Applications

• Industrial control systems requiring high current capacity
• Power distribution boards in heavy machinery
• High-voltage signal interconnects in aerospace applications

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to ensure correct pin count and contact configuration. Confirm that the required mating housing and jack screws are sourced separately, as this item is a header-only component. Check for RoHS compliance status updates directly with the manufacturer before finalizing procurement specifications.

Headers, Male Pins Selection Notes

Select this part when a 4.00mm pitch is required for higher current handling compared to standard 2.00mm connectors. Ensure the PCB layout accommodates the vertical orientation and the physical dimensions of the mounting flange. Verify that the application environment temperature remains within the specified operating range for PPS materials.

Headers, Male Pins Part Context

This component belongs to the Datamate Mix-Tek series, which is engineered for high-reliability applications. The Mix-Tek line combines power and signal capabilities in a compact form factor. This specific model represents a vertical header variant, distinct from the crimp or surface-mount options available in the broader M80 product family.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific configuration. Cross-reference with other Harwin Datamate headers only if the 4.00mm pitch and 20A rating requirements can be met by alternative models.
