Headers, Male Pins Overview

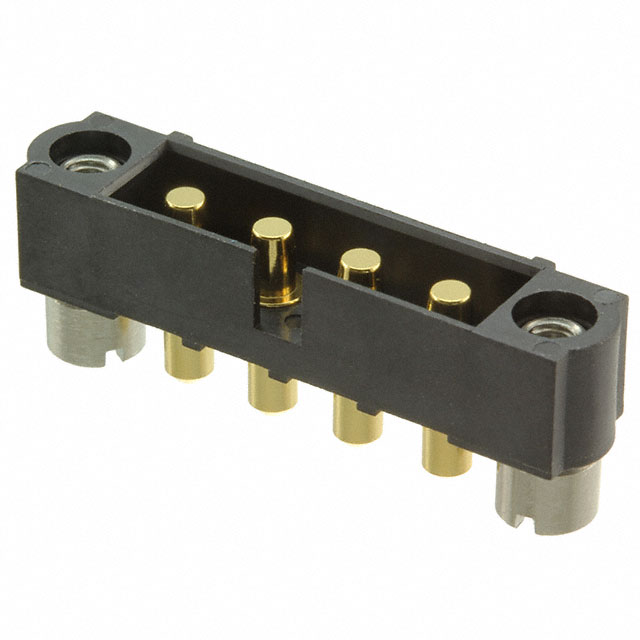

The Harwin M80-5000000M2-04-PM1-00-000 is a Datamate Mix-Tek male plug connector designed for high-power applications. It features a 4-position configuration with a 4 mm pitch, supporting through-hole termination in a single row. The component utilizes brass contacts with gold plating to ensure reliable conductivity and corrosion resistance. Constructed with a black polyamide housing, it offers robust mechanical stability. This connector is part of the Power to the Board series, engineered to handle significant current loads within compact industrial environments while maintaining secure mating interfaces.

Headers, Male Pins Feature Summary

• High current capacity within a compact form factor
• Gold-plated brass contacts for enhanced conductivity
• Through-hole termination for secure board mounting

Headers, Male Pins Applications

• Industrial heating systems
• Cooling equipment power distribution
• High-power data transmission links

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact count, housing material, and termination style. Ensure compatibility with the corresponding female receptacle from the same Datamate Mix-Tek series. Confirm that the 4 mm pitch aligns with the target PCB layout requirements. Check for any specific environmental ratings if operating in extreme temperatures. Validate that the through-hole footprint matches the manufacturer's recommended land pattern.

Headers, Male Pins Selection Notes

Select this connector when high current carrying capability is required in a space-constrained design. The 4 mm pitch allows for larger contact areas compared to standard signal connectors. Consider the through-hole mounting method for applications requiring higher mechanical strength than surface mount options. Ensure the mating environment supports the specified temperature range and current ratings for optimal performance.

Headers, Male Pins Part Context

This component belongs to the Datamate Mix-Tek family, which specializes in high-reliability interconnect solutions. The series is known for its modular design and ability to mix power and signal contacts. As a male plug, it mates with female sockets to establish electrical connections. The product line targets demanding industrial sectors where durability and consistent performance are critical.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin Datamate Mix-Tek male plugs with matching 4-position counts and 4 mm pitch. Verify that alternative parts maintain the same through-hole termination and single-row configuration. Ensure the replacement maintains equivalent current ratings and contact materials for functional interchangeability.
