M80-5000000M2-06-331-00-000

Headers, Male Pins Overview

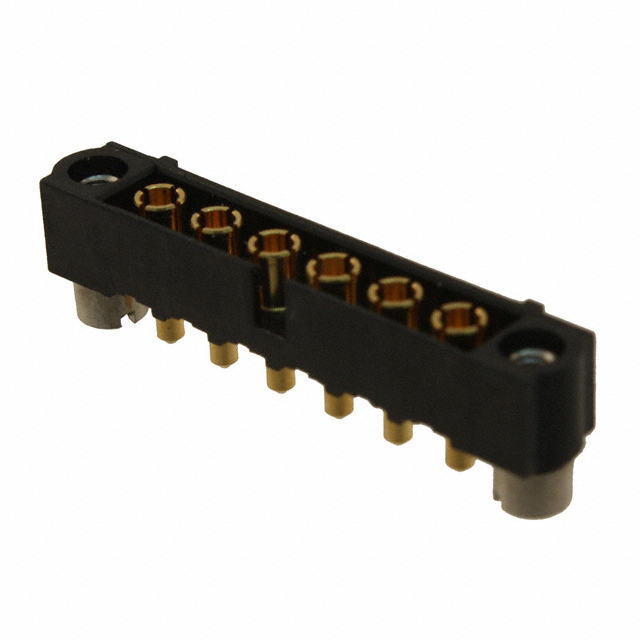

The Harwin M80-5000000M2-06-331-00-000 is a Datamate Mix-Tek male plug connector designed for power-to-the-board applications. It features a single row with six positions, utilizing four-finger beryllium copper contacts rated for 20A current. The unit employs vertical through-hole termination with a 3.5mm board mount height and includes integrated jackscrews for secure mating. Gold plating is applied to contact areas and terminations to ensure reliable conductivity.

Headers, Male Pins Feature Summary

• Utilizes high-reliability four-finger beryllium copper contact technology to maintain connection integrity without signal loss.
• Incorporates gold finish on both contact areas and terminations to enhance electrical performance and corrosion resistance.
• Features integrated jackscrews to provide secure mechanical locking during mating operations.

Headers, Male Pins Applications

• Industrial control systems requiring robust power distribution
• Automotive electronics with high-vibration environments
• Medical equipment needing reliable power connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm the inclusion of jackscrews and the exact pin count. Ensure compatibility with the corresponding female socket series. Check RoHS compliance status against project requirements. Confirm lead times as this may be an off-the-shelf or special order item depending on manufacturer stock levels.

Headers, Male Pins Selection Notes

Select this component when a vertical male connector with dedicated power contacts is required. The 3.5mm board mount height dictates PCB stack-up constraints. Verify that the mating interface supports the integrated jackscrew mechanism. Ensure the 20A current rating meets the circuit's thermal and electrical demands.

Headers, Male Pins Part Context

This part belongs to the Datamate Mix-Tek family, which combines power and signal capabilities in a compact form factor. The Mix-Tek series is engineered for high-density applications where space is limited but reliability is critical. It complements other Harwin connectors by offering mixed contact options within a standardized housing system.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the Datamate Mix-Tek series specifications, including the 3.5mm board mount height and jack screw configuration.

Headers, Male Pins FAQ

Does this connector include signal contacts?

No, this specific model contains only power contacts and excludes signal contacts.

What is the current rating for the contacts?

The contacts are rated for 20A current capacity.
