M80-5000000M2-08-PM1-00-000

Headers, Male Pins Overview

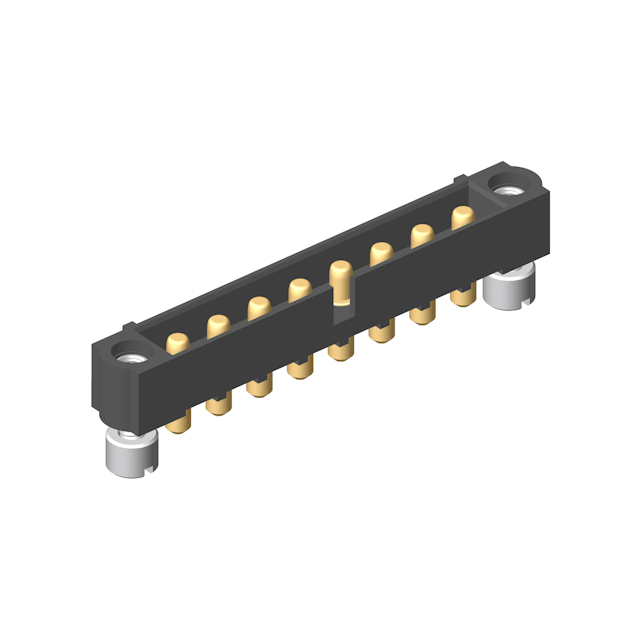

The M80-5000000M2-08-PM1-00-000 is a Datamate Mix-Tek male cable connector manufactured by Harwin. It belongs to the Power to the Board category and features a pin contact type within the Mix-Tek series. The component supports a maximum wire gauge of 18 AWG. This specific part number designates a configuration with no jackscrews, no signal contacts, and eight power contacts rated for 18 AWG wire.

Headers, Male Pins Feature Summary

• Integrates high-current power transmission capabilities through dedicated mixed-contact architecture
• Provides secure mechanical termination without requiring additional jackscrew hardware
• Supports direct cable attachment using standard crimping techniques for specified wire gauges

Headers, Male Pins Applications

• Industrial equipment power distribution systems
• Automotive electronic control unit connections
• Telecommunications infrastructure power interfaces

Headers, Male Pins Procurement Notes

Verify the exact suffix against the official Harwin datasheet to confirm contact count and wire gauge compatibility. Ensure the absence of jackscrews aligns with the mechanical design requirements. Cross-reference the specific part number to avoid confusion with similar Mix-Tek variants that may include signal pins or different housing configurations.

Headers, Male Pins Selection Notes

Select this connector when high-density power delivery is required in space-constrained applications. The Mix-Tek series allows mixing power and signal contacts if needed, though this specific variant focuses solely on power. Consider the 18 AWG limit for current carrying capacity and ensure mating connectors match the female socket specifications.

Headers, Male Pins Part Context

This component is part of the broader Datamate family, known for high-reliability interconnect solutions. The Mix-Tek sub-series specifically addresses applications needing robust power handling alongside potential signal integration. Harwin designs these connectors to withstand harsh environments while maintaining consistent electrical performance over numerous mating cycles.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing mating sockets before considering alternative suppliers.
