M80-5000000M2-10-331-00-000

Headers, Male Pins Overview

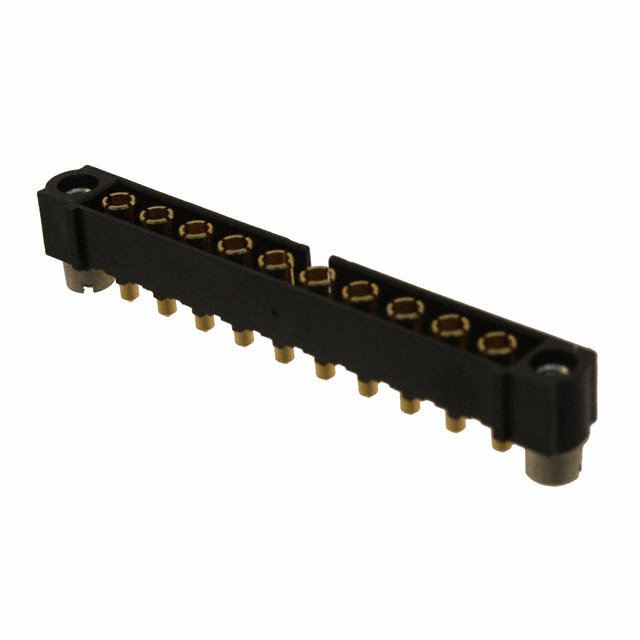

The M80-5000000M2-10-331-00-000 is a Datamate Mix-Tek male cable connector manufactured by Harwin. It features a 10-contact configuration designed for power-to-board applications. The unit utilizes four-finger beryllium copper contact technology to ensure connection integrity under vibration and shock. It supports up to 18 AWG wire gauge and employs through-hole straight termination. The connector is available in 40A nominal power contact variants, providing robust performance in demanding environments.

Headers, Male Pins Feature Summary

• High-reliability four-finger beryllium copper contact technology ensures connection integrity without loss
• Designed to withstand vibration, shock, and temperature extremes
• Datamate Mix-Tek series offers high-performance 2mm pitch connectivity

Headers, Male Pins Applications

• Power-to-board connections
• Industrial equipment requiring vibration resistance
• Electronics subjected to shock and temperature extremes

Headers, Male Pins Procurement Notes

Verify the specific pin count and contact type against project requirements before ordering. Confirm that the through-hole straight termination style matches the PCB layout constraints. Ensure the 18 AWG maximum wire gauge capability aligns with the intended wiring harness specifications. Cross-reference the official datasheet to validate environmental ratings for the operating conditions.

Headers, Male Pins Selection Notes

Select this component when high-reliability power transmission is required in harsh environments. The four-finger contact design provides superior retention compared to standard contacts. Consider the 2mm pitch for compact board space utilization. Verify compatibility with mating connectors within the Datamate Mix-Tek family to ensure proper mechanical and electrical interface alignment.

Headers, Male Pins Part Context

This part belongs to the Datamate Mix-Tek M80 series, characterized by high-reliability interconnect solutions. The series is engineered for applications demanding robust performance under mechanical stress. Harwin designs these connectors to maintain signal and power integrity across various industrial sectors. The M80 designation indicates the specific form factor and contact arrangement within the broader product line.

Headers, Male Pins Replacement Considerations

Consult official Harwin documentation for confirmed substitute part numbers. Generic rectangular connectors may not match the four-finger beryllium copper contact reliability or the specific 2mm pitch dimensions. Ensure any replacement maintains the same through-hole straight termination and power rating capabilities.
