M80-5000000M2-10-PM1-00-000

Headers, Male Pins Overview

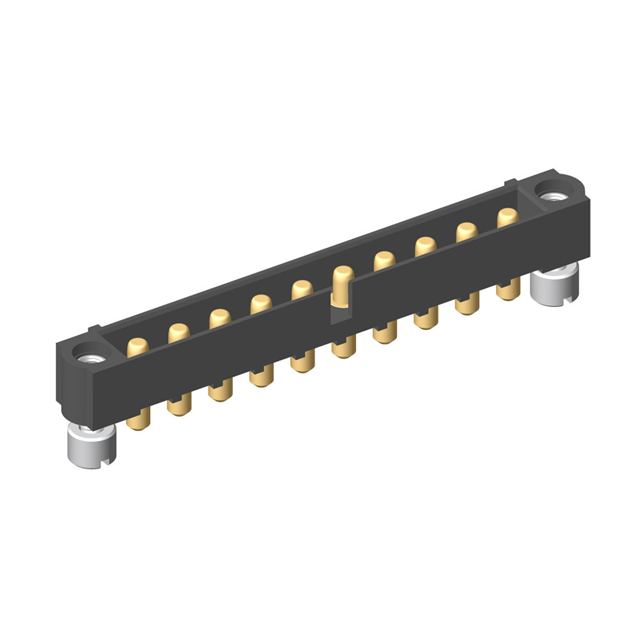

The Harwin M80-5000000M2-10-PM1-00-000 is a Datamate J-Tek male header connector designed for vertical through-hole mounting. It features a 4 mm pitch and provides 10 positions. The contacts are constructed from beryllium copper with gold plating to ensure reliable signal transmission. The housing is made of black polyphenylene sulfide (PPS), offering high thermal stability and mechanical strength. This component supports straight installation angles and is rated for operation within a temperature range of -55°C to +125°C, suitable for demanding industrial applications.

Headers, Male Pins Feature Summary

• Utilizes high-reliability four-finger beryllium copper contact technology for secure connection integrity
• Features gold-plated contacts to prevent corrosion and maintain low contact resistance
• Constructed with durable polyphenylene sulfide housing for enhanced thermal and mechanical performance

Headers, Male Pins Applications

• Industrial control systems requiring robust interconnects
• Test and measurement equipment interfaces
• Automotive electronics modules
• Telecommunications hardware connections

Headers, Male Pins Procurement Notes

Verify the specific pin count and pitch requirements against the design schematic before ordering. Confirm that the vertical through-hole mounting style aligns with the PCB layout constraints. Ensure the operating temperature environment falls within the specified -55°C to +125°C range. Check for any RoHS compliance documentation if required by project specifications. Validate that the gold contact finish meets the conductivity standards for the intended application.

Headers, Male Pins Selection Notes

Select this model when a vertical orientation and through-hole termination are necessary for a 10-position interface. The 4 mm pitch distinguishes it from standard 2.54 mm or 2.0 mm connectors. Consider the beryllium copper alloy for superior spring properties compared to standard phosphor bronze options. Evaluate the PPS housing material for applications involving higher thermal loads during soldering or operation.

Headers, Male Pins Part Context

This part belongs to the Datamate Mix-Tek and J-Tek series by Harwin, known for high-reliability board-to-board and cable-to-board connections. The M80 prefix indicates the specific product line configuration. It complements female receptacles and cable assemblies within the same ecosystem to form complete interconnect solutions.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 4 mm pitch, 10-position count, and vertical through-hole format. Verify compatibility with mating female connectors in the Datamate family. Ensure equivalent current ratings and temperature limits are met by alternative components.
