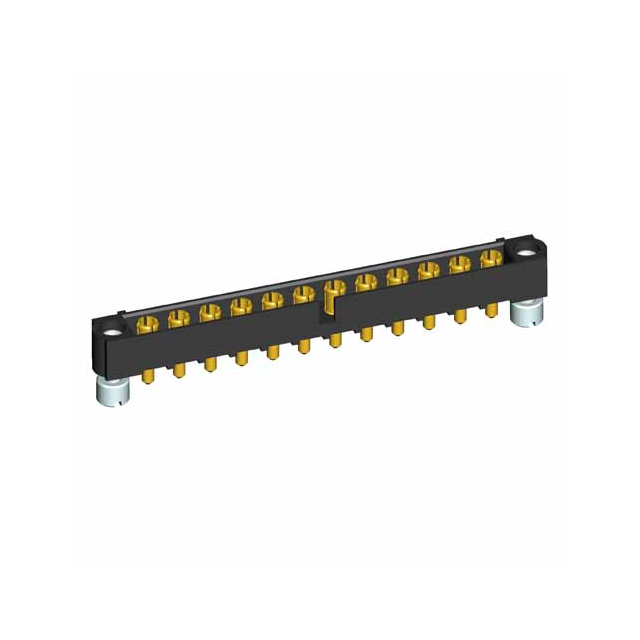

M80-5000000M2-12-331-00-000

$44.11

Description：CONN HEADER VERT 12POS 4MM
Series：Datamate Mix-Tek
Mfr：Harwin Inc.
Package：Bulk

SKU:569a82a5d94e Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M80-5000000M2-12-331-00-000 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 12POS 4MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M80-5000000M2-12-331-00-000

Description：CONN HEADER VERT 12POS 4MM
Series：Datamate Mix-Tek
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header
Contact Type：Male Pin, Power
Pitch - Mating：0.157" (4.00mm)
Number of Positions：12
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Threaded
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.220" (5.60mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature：-55°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：20A
Voltage Rating：800V

Headers, Male Pins datasheet and documents for M80-5000000M2-12-331-00-000

M80-5000000M2-12-331-00-000

Headers, Male Pins Overview

The Harwin M80-5000000M2-12-331-00-000 is a Datamate Mix-Tek male vertical throughboard connector featuring 12 positions. It supports a current rating of 20A and a voltage rating of 800V. The component utilizes a 2mm pitch and includes jackscrews for secure mating. Insulation color is black, with mated stacking heights available at 7.3mm or 9.75mm.

Headers, Male Pins Feature Summary

Vertical throughboard mounting configuration
Integrated jackscrew system for mechanical retention
High current capacity suitable for power applications

Headers, Male Pins Applications

Industrial control systems
Power distribution units
Electronic equipment requiring robust board-to-cable connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm jack screw inclusion and contact configuration. Ensure compatibility with the corresponding female socket series. Confirm insulation material specifications against environmental requirements. Check RoHS compliance status prior to final procurement decisions.

Headers, Male Pins Selection Notes

Select this component when high current handling and secure mechanical locking are required. The vertical orientation simplifies panel integration. Verify that the 2mm pitch aligns with existing PCB layout constraints. Consider the available stacking heights for enclosure depth planning.

Headers, Male Pins Part Context

This part belongs to the Datamate Mix-Tek series by Harwin. It is designed for mixed signal and power applications within the Power to the Board category. The series offers modular flexibility for various industrial connectivity needs.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires detailed electrical and mechanical parameter matching.
