M80-5000000M3-02-331-00-000

Headers, Male Pins Overview

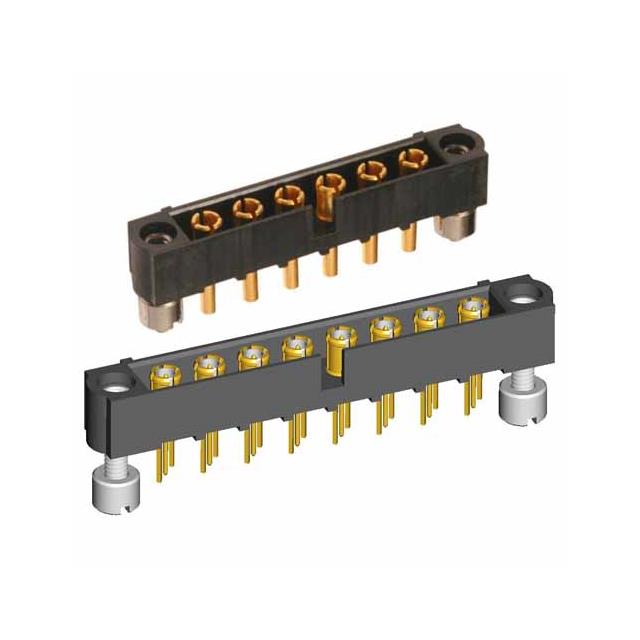

The M80-5000000M3-02-331-00-000 is a Datamate Mix-Tek male vertical throughboard connector manufactured by Harwin. It belongs to the Power to the Board category and features jackscrews for secure panel mounting. The component utilizes polarizing keys to ensure correct alignment during assembly. Designed for robust industrial applications, it provides reliable electrical connections within mixed-signal environments.

Headers, Male Pins Feature Summary

• Datamate Mix-Tek male vertical throughboard connector design
• Integrated jackscrews for secure panel mounting
• Polarizing key mechanism for precise alignment

Headers, Male Pins Applications

• Industrial control systems requiring secure panel interfaces
• Mixed-signal data transmission in rugged environments
• Power distribution modules with panel mount requirements

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Harwin documentation to confirm pin configuration and contact material specifications. Ensure compatibility with mating female connectors within the Datamate Mix-Tek series. Cross-reference the datasheet for mechanical dimensions and thermal ratings before integration into final assemblies.

Headers, Male Pins Selection Notes

Select this connector when vertical panel mounting with jackscrew retention is required. The Mix-Tek series supports mixed signal and power applications. Verify that the polarizing key orientation matches the system housing design. Confirm current carrying capacity requirements align with the connector's rated specifications.

Headers, Male Pins Part Context

This part is part of Harwin's Datamate family, known for high-density interconnect solutions. The Mix-Tek variant specifically addresses applications needing both signal and power transmission in a compact form factor. It complements other vertical and horizontal variants within the same product line.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Harwin engineering for potential cross-references if this specific configuration is unavailable.
