M80-5000000M3-02-332-00-000

Headers, Male Pins Overview

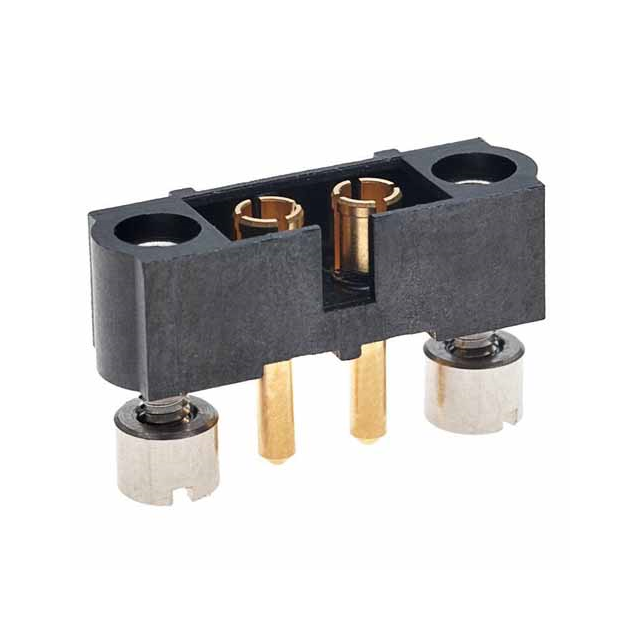

The Harwin M80-5000000M3-02-332-00-000 is a Datamate Mix-Tek male pin header connector designed for power-to-board applications. It features a 4.00 mm pitch and a single row with two positions. The component supports a rated current of 20 A and a voltage rating of 800 V when mated. It utilizes brass contacts with gold plating and is intended for panel mounting via crimp termination.

Headers, Male Pins Feature Summary

• High-reliability design within the Datamate Mix-Tek series
• Capable of handling high current loads up to 20 A
• Supports high voltage ratings of 800 V in mated configurations

Headers, Male Pins Applications

• Power distribution in industrial control systems
• Board-to-board power connections in heavy machinery
• High-current signal routing in automotive electronics

Headers, Male Pins Procurement Notes

Verify that the specific ordering suffix matches the required contact configuration and housing style. Confirm that the crimp tooling is compatible with the specified wire gauge and terminal type. Ensure environmental conditions align with the operational temperature range and material specifications provided in the official datasheet.

Headers, Male Pins Selection Notes

Select this component when high current capacity and robust mechanical reliability are required. The 4.00 mm pitch allows for substantial conductor sizes. Consider the single-row layout for space-constrained panel installations where direct mating with female sockets is necessary.

Headers, Male Pins Part Context

This part belongs to the Datamate Mix-Tek family, which combines mixed signal and power capabilities. The M80-50 series specifically addresses high-power requirements with durable connectors suitable for demanding environments. It complements other components in the same ecosystem for complete interconnect solutions.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the 4.00 mm pitch, 2-position count, and 20 A current rating precisely.
