M80-5000000M3-03-331-00-000

Headers, Male Pins Overview

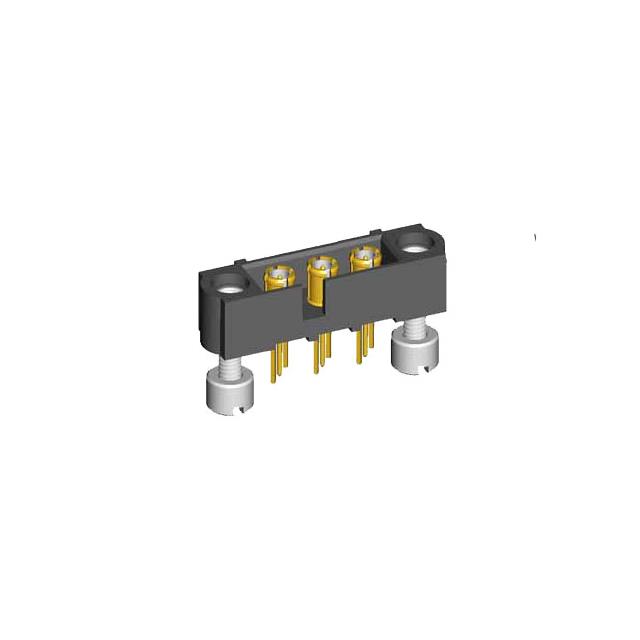

The Harwin M80-5000000M3-03-331-00-000 is a Datamate Mix-Tek male cable connector designed for power-to-board applications. It features three 20A power contacts with gold finish on contact areas and terminations. The component utilizes single row straight vertical orientation with throughboard PCB termination at 3.5mm spacing. It employs crimp molding L-Tek technology and includes no jackscrews or signal contacts, focusing exclusively on high-reliability power transmission.

Headers, Male Pins Feature Summary

• High-reliability four-finger beryllium copper contact technology ensures connection integrity without loss
• Gold finish applied to both contact areas and PCB terminations for enhanced conductivity
• Single row straight vertical configuration optimized for direct throughboard mounting

Headers, Male Pins Applications

• Power distribution in industrial control systems
• High-current connections in automotive electronics
• Power supply interfaces in telecommunications equipment

Headers, Male Pins Procurement Notes

Verify the specific ordering suffixes against the official Harwin datasheet to confirm pin count, termination style, and plating specifications. Ensure compatibility with mating female connectors within the Datamate Mix-Tek series. Confirm that the crimp molding process meets your assembly requirements. Cross-reference the part number with the manufacturer's latest documentation to avoid discrepancies in technical parameters.

Headers, Male Pins Selection Notes

Select this component when high current capacity of 20A per contact is required in a compact form factor. The vertical throughboard design suits applications needing direct PCB integration without additional cabling complexity. Consider the gold-plated terminations for environments requiring corrosion resistance. Verify that the single-row layout fits within the available board space constraints.

Headers, Male Pins Part Context

This part belongs to the Datamate Mix-Tek series by Harwin, known for robust power connectivity solutions. The Mix-Tek line combines mixed signal and power capabilities, though this specific variant focuses solely on power contacts. It represents a standard solution for reliable power delivery in demanding electronic assemblies.

Headers, Male Pins Replacement Considerations

Consult Harwin's official substitution guide for compatible Datamate Mix-Tek alternatives. Verify that any substitute maintains the same 20A rating, 3.5mm pitch, and vertical throughboard termination style. Ensure mechanical dimensions and mating interface compatibility before implementation.
