M80-5000000M3-04-332-00-000

Headers, Male Pins Overview

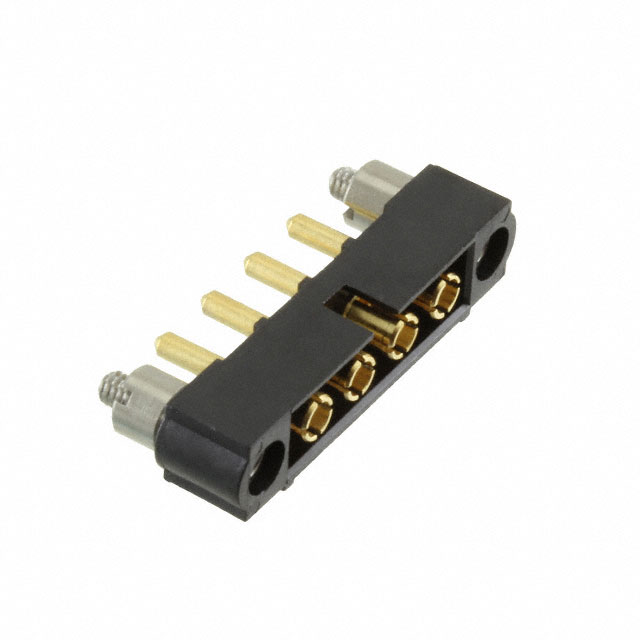

The Harwin M80-5000000M3-04-332-00-000 is a Datamate Mix-Tek male plug connector designed for power-to-the-board applications. It features four positions with a 4 mm pitch and utilizes beryllium copper contacts rated for 20 A current. The unit includes jackscrews for secure mating and supports up to 18 AWG wire. Operating within a temperature range of -55°C to +125°C, it meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• High-reliability four-finger beryllium copper contact technology ensures connection integrity without signal loss.
• Integrated jackscrew mechanism provides robust mechanical retention during mating cycles.
• Mix-Tek design allows mixed signal and power configurations within the same housing system.

Headers, Male Pins Applications

• Industrial control systems requiring high-current connections
• Power distribution units in automated machinery
• Heavy-duty equipment interface modules

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm jack screw inclusion and contact plating options. Ensure compatibility with the corresponding female socket series before procurement. Confirm that the selected wire gauge matches the 18 AWG maximum specification for proper termination. Check regional availability as supply chains may vary by distributor location.

Headers, Male Pins Selection Notes

Select this component when high current capacity and mechanical security are required. The 4 mm pitch accommodates larger conductors compared to standard data connectors. Consider the Mix-Tek series if future expansion into mixed-signal environments is anticipated. Validate thermal management requirements against the 125°C upper operating limit.

Headers, Male Pins Part Context

This part belongs to the Datamate Mix-Tek family, known for modular connectivity solutions. The M80-50 series designation indicates a male plug configuration. Harwin designs these connectors for demanding environments where vibration resistance and electrical stability are critical performance factors.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other Harwin Datamate variants only if pin count and pitch match exactly.
