M80-5000000M3-06-332-00-000

Headers, Male Pins Overview

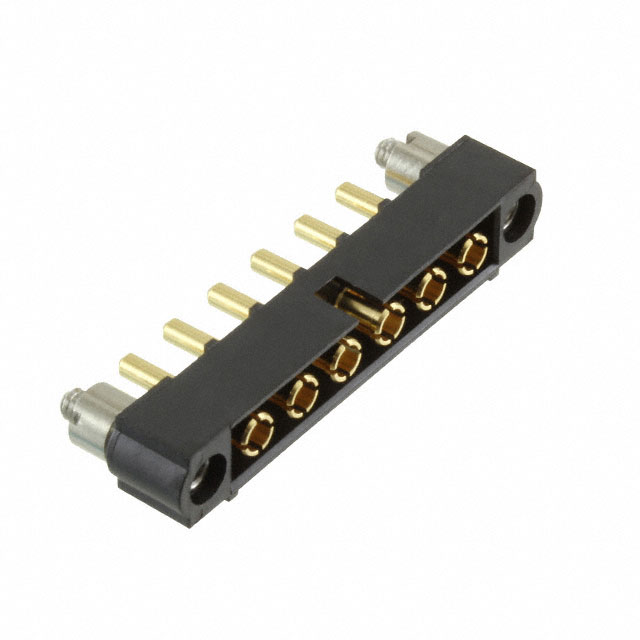

The Harwin M80-5000000M3-06-332-00-000 is a Datamate Mix-Tek male power connector designed for wire-to-board applications. It features a 4 mm pitch and six contacts arranged in a single row. The component utilizes through-hole termination for secure PCB mounting. Rated for 20 A current and 120 V AC/DC, it supports up to 18 AWG wire gauges. The housing is black polyphenylene sulfide (PPS), with brass contacts plated in gold. This straight-mount plug includes jackscrews for mechanical retention.

Headers, Male Pins Feature Summary

• High-current capacity rated at 20 A for robust power delivery
• Durable PPS housing with gold-plated brass contacts for corrosion resistance
• Integrated jackscrew system ensures secure mating and vibration resistance

Headers, Male Pins Applications

• Industrial control panel power distribution
• Heavy-duty equipment wiring harnesses
• Power supply interconnects requiring high current ratings

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm the inclusion of jackscrews, as this variant differs from standard versions without them. Ensure compatibility with 18 AWG wire gauges during assembly preparation. Confirm that the through-hole footprint matches the target PCB design specifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when high current carrying capability is required in a compact form factor. The 4 mm pitch allows for larger contact areas compared to smaller pitch connectors. Ensure the application environment does not exceed the specified temperature range. Verify that the straight orientation fits the available spatial constraints within the enclosure design.

Headers, Male Pins Part Context

This part belongs to the Datamate Mix-Tek series, which combines signal and power contacts in modular configurations. The M80 series designation indicates a specific housing size and pin count configuration within Harwin's broader connector portfolio. It is engineered for reliability in demanding industrial environments where secure connections are critical.

Headers, Male Pins Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific model. Cross-referencing requires matching the 4 mm pitch, 6-position layout, and 20 A rating. Verify mechanical dimensions and electrical characteristics against alternative suppliers to ensure functional equivalence.
