M80-5000000M3-08-332-00-000

Headers, Male Pins Overview

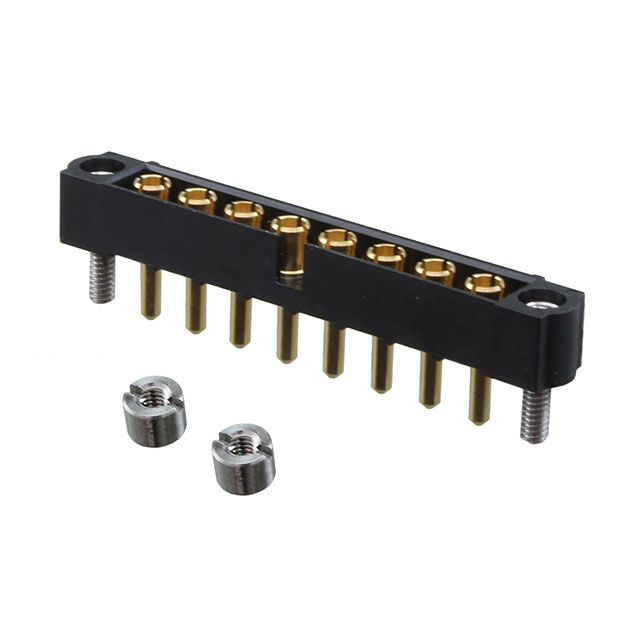

The Harwin M80-5000000M3-08-332-00-000 is a Datamate Mix-Tek vertical PCB header connector designed for power-to-board applications. It features an 8-position configuration with zero signal contacts, utilizing only power pins. The component supports a maximum wire gauge of 18 AWG and offers a current rating of 20A with a voltage rating of 800V. Mated stacking heights are available at 7.3mm and 9.75mm. The connector employs a solder termination method and includes keying slots, mating flanges, and mounting hardware to ensure secure installation.

Headers, Male Pins Feature Summary

• Vertical PCB header design for direct board mounting
• Dedicated power contact configuration without signal pins
• Integrated keying slot and mounting flange for alignment
• High voltage and current capacity for robust power delivery

Headers, Male Pins Applications

• Power distribution in industrial control systems
• High-voltage connections in electronic assemblies
• Board-to-board power interfaces requiring secure locking

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm pin count, contact type, and mechanical dimensions. Ensure compatibility with mating connectors regarding stacking height and keying orientation. Confirm insulation color and terminal plating requirements match the application environment before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this connector when high current carrying capacity and voltage isolation are required in a compact vertical form factor. The Mix-Tek series provides reliable performance for power applications. Consider the available stacking heights to ensure proper clearance within the enclosure. Verify that the 18 AWG wire gauge limit meets the system's wiring specifications.

Headers, Male Pins Part Context

This component belongs to the Datamate Mix-Tek series by Harwin, which specializes in high-reliability interconnect solutions. The series is known for its robust construction and versatile configuration options. This specific part number represents a variant optimized for pure power transmission, distinguishing it from mixed-signal counterparts within the same product family.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult Harwin directly for cross-reference information or verify if alternative series components meet the electrical and mechanical requirements.
