M80-5000000M3-08-PM1-00-000

Headers, Male Pins Overview

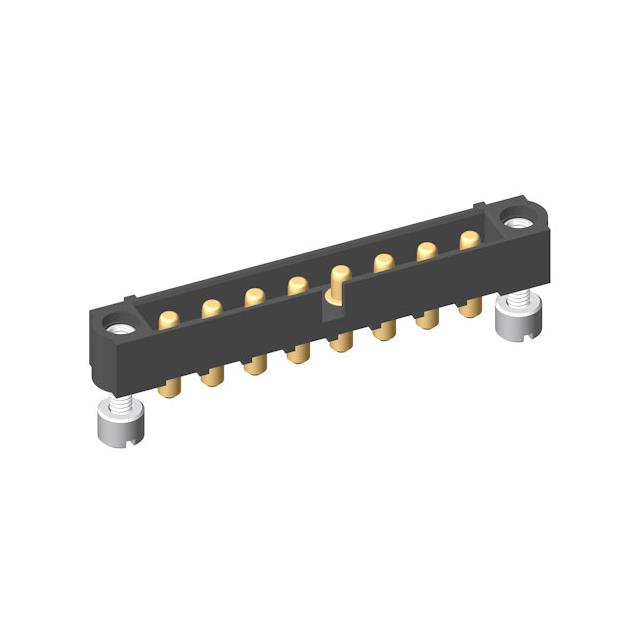

The Harwin M80-5000000M3-08-PM1-00-000 is a Datamate Mix-Tek male cable connector designed for power-to-board applications. It features eight positions with no signal contacts, utilizing six 18 AWG power contacts. The component supports a current rating of 40A and a voltage rating of 800VAC/DC. It has a mated stacking height of 7.3mm and does not include jackscrews.

Headers, Male Pins Feature Summary

• Datamate Mix-Tek series male cable connector
• Six 18 AWG power contacts without signal pins
• No jackscrew design for simplified assembly

Headers, Male Pins Applications

• Power distribution in industrial equipment
• High-current connections in automotive systems
• Power supply interconnects in electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm contact configuration and ratings. Ensure compatibility with mating connectors within the Datamate Mix-Tek family. Check for any recent updates to the datasheet regarding environmental compliance or material specifications before finalizing procurement.

Headers, Male Pins Selection Notes

Select this connector when high current capacity up to 40A is required in a compact form factor. The absence of jackscrews makes it suitable for applications where space is limited or rapid connection is prioritized. Ensure the mating interface supports the 7.3mm stacking height and matches the pin configuration.

Headers, Male Pins Part Context

This component belongs to the Datamate Mix-Tek series by Harwin, which provides robust power-to-board solutions. The series is known for its reliability in demanding environments. This specific model focuses on power delivery with a streamlined design, excluding signal contacts to optimize space and cost for pure power applications.

Headers, Male Pins Replacement Considerations

Compatible substitutes must match the 8-position layout, 6-power-contact configuration, and 40A current rating. Verify that alternative connectors support 800VAC/DC and maintain the 7.3mm stacking height. Ensure the mating system uses compatible Datamate Mix-Tek female counterparts.
