M80-5000000M3-10-332-00-000

Headers, Male Pins Overview

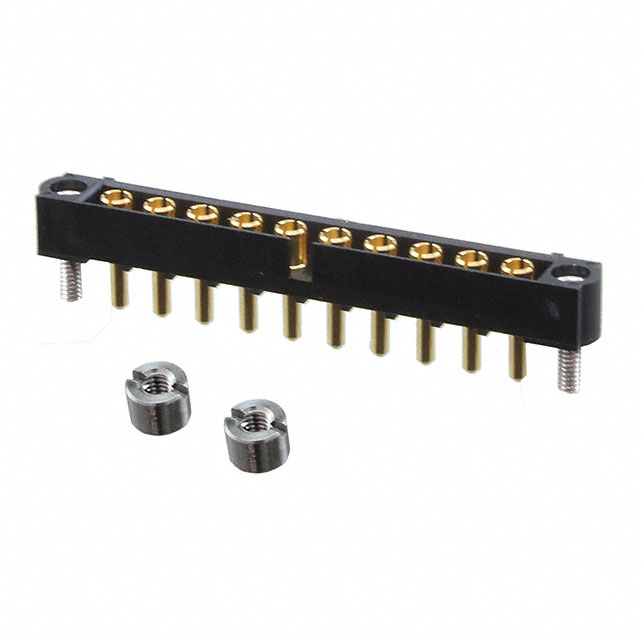

The M80-5000000M3-10-332-00-000 is a power-to-board connector from the Harwin Datamate Mix-Tek series. It features a single row of ten positions with a 4 mm pitch. The component utilizes crimp termination for wire connections and is designed for panel mount installation in a straight orientation. Contacts are constructed from brass with gold plating to ensure reliable conductivity. The housing is made of black polyphenylene sulfide (PPS), providing durability across an operating temperature range of -55°C to +125°C. This socket configuration supports high-current applications within industrial environments.

Headers, Male Pins Feature Summary

• High current capacity suitable for demanding power distribution tasks
• Robust PPS housing material ensures thermal stability
• Gold-plated brass contacts provide corrosion resistance

Headers, Male Pins Applications

• Industrial control panels
• Power distribution units
• Heavy-duty equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Harwin documentation to confirm pin count, contact type, and termination method. Ensure compatibility with mating pins and panel cutout dimensions before procurement. Confirm RoHS compliance status through the manufacturer's latest environmental declarations. Cross-reference the part number with distributor catalogs to avoid obsolete or incorrect variants.

Headers, Male Pins Selection Notes

Select this connector when high current carrying capability and robust mechanical performance are required. The 4 mm pitch allows for larger conductors compared to standard signal connectors. Verify that the panel mounting style aligns with the assembly design. Ensure the mating partner matches the Mix-Tek series specifications for proper engagement and electrical continuity.

Headers, Male Pins Part Context

This component belongs to the Datamate Mix-Tek family, which combines power and coaxial contacts in modular configurations. The M80 series is engineered for harsh environments requiring high reliability. The specific model provides a single-row solution for direct board or panel interconnection. It serves as a critical interface in systems needing durable power transmission.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available.
