M80-5000000M5-02-333-00-000

Headers, Male Pins Overview

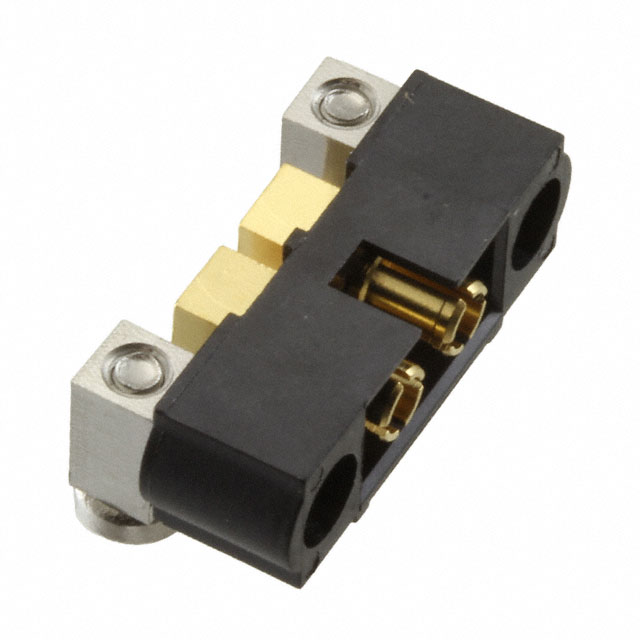

The Harwin M80-5000000M5-02-333-00-000 is a Datamate Mix-Tek male vertical through-board connector. It features a single row with two positions and a 4mm pitch. The contacts are brass with gold plating, rated for 20A current and 120V AC/DC voltage. Designed for panel mounting, it utilizes crimp termination for wire attachment. The housing is constructed from black polyphenylene sulfide (PPS), ensuring durability in demanding environments.

Headers, Male Pins Feature Summary

• Combines high-current power transmission with signal connectivity within a compact mixed-signal interface
• Provides secure mechanical retention through vertical panel mount installation with integrated jackscrews
• Utilizes robust gold-plated brass contacts to ensure reliable electrical performance under heavy load conditions

Headers, Male Pins Applications

• Industrial control panels requiring mixed signal and power distribution
• Medical equipment interfaces needing reliable high-current connections
• Automotive electronics assemblies with strict space constraints

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Harwin Datamate Mix-Tek configuration tool to confirm contact arrangement and housing variations. Ensure compatibility with corresponding female receptacles and appropriate crimping tools for the specified wire gauge range before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, vertical through-board solution is required for mixed applications. The 4mm pitch accommodates higher current capacities compared to standard 2mm series connectors. Confirm that the panel thickness aligns with the provided jackscrew length specifications for proper engagement.

Headers, Male Pins Part Context

This part belongs to the Datamate Mix-Tek family, designed to integrate power and signal lines in a single connector system. It complements other Harwin M80 series components, offering a modular approach to board-to-panel interconnections while maintaining high reliability standards across various industrial sectors.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Harwin Datamate Mix-Tek variants with matching 2-position, 4mm pitch configurations. Verify equivalent current ratings and terminal types before cross-referencing with alternative manufacturers' high-current panel mount connectors.
