M80-5000000M5-03-333-00-000

Headers, Male Pins Overview

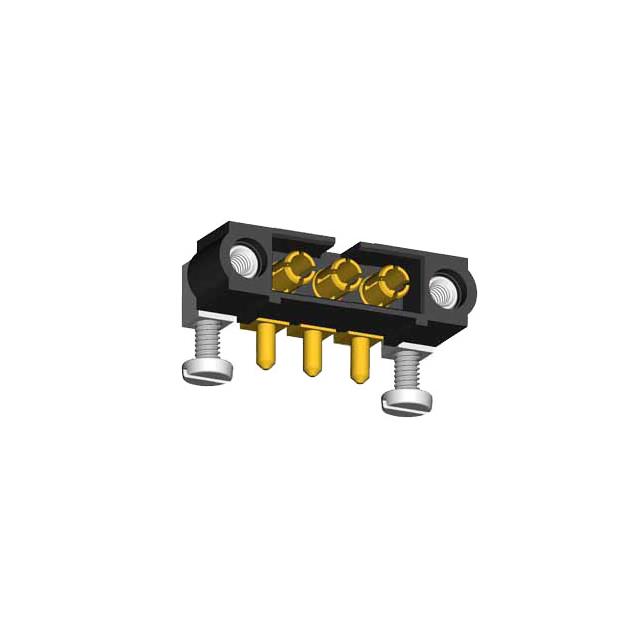

The M80-5000000M5-03-333-00-000 is a Datamate Mix-Tek male connector from Harwin Inc., designed for power-to-board applications. It features a horizontal orientation with three positions and utilizes through-hole right-angle termination. The connector supports a current rating of 20A and operates within a temperature range of -55°C to +125°C. Constructed with black insulation rated UL94 V-0, it employs a 0.157-inch (4.00mm) pitch. This component integrates signal and power contacts in a mixed configuration, suitable for compact electronic assemblies requiring reliable electrical connections.

Headers, Male Pins Feature Summary

• Datamate Mix-Tek series design enabling mixed signal and power contact integration
• Horizontal form factor with right-angle through-hole termination for space-efficient mounting
• High current capacity of 20A supported by robust contact construction
• UL94 V-0 flammability rating on black insulation material for safety compliance

Headers, Male Pins Applications

• Power distribution modules in industrial control systems
• Compact electronic enclosures requiring right-angle board connections
• Mixed-signal interfaces in automotive electronics
• Consumer device internal power and data interconnects

Headers, Male Pins Procurement Notes

Verify the specific pin configuration and contact plating requirements against your system design before ordering. Confirm that the horizontal right-angle orientation aligns with your PCB layout constraints. Ensure the 20A current rating meets the thermal and electrical demands of your application. Check for any RoHS or REACH compliance documentation if required by your manufacturing standards. Validate compatibility with mating connectors in the Datamate Mix-Tek family.

Headers, Male Pins Selection Notes

Select this connector when a horizontal, right-angle through-hole solution is required for mixed signal and power applications. The 20A rating makes it suitable for higher current loads compared to standard signal-only headers. Consider the 4.00mm pitch for spacing requirements. The UL94 V-0 rating is essential for fire safety in enclosed environments. Ensure the mating connector matches the Mix-Tek series specifications for proper engagement.

Headers, Male Pins Part Context

This part belongs to Harwin's Datamate Mix-Tek family, which combines signal and power contacts in a single connector housing. The series is known for high reliability and compact size, often used in demanding environments. The M80 prefix indicates a specific connector type within the broader Datamate ecosystem, designed for versatile board-to-board or cable-to-board connections.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing Datamate Mix-Tek mating components before considering alternatives.
