M80-5000000M5-04-333-00-000

Headers, Male Pins Overview

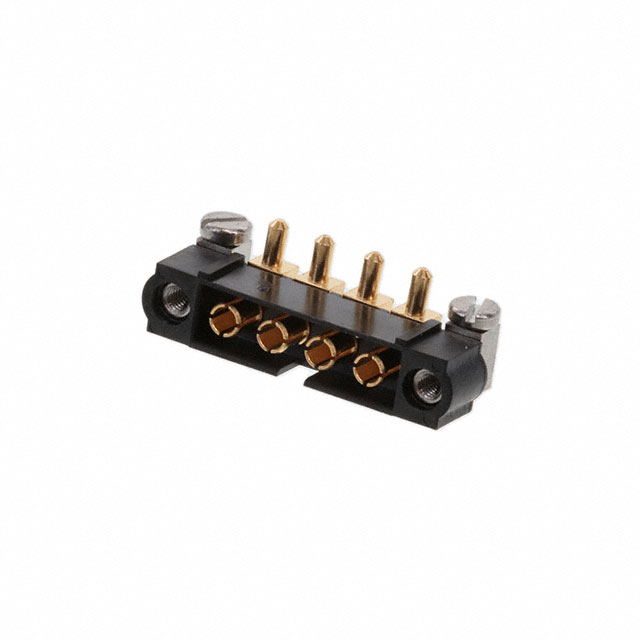

The Harwin M80-5000000M5-04-333-00-000 is a Datamate Mix-Tek male power connector designed for board-to-cable applications. It features a 4mm pitch with four positions arranged in a single row. The component utilizes through-hole right-angle mounting and includes threaded jackscrews to ensure secure mating under high vibration and shock conditions. Electrical ratings include a current capacity of 20A and a voltage rating of 800V. The housing height is specified at 5.55mm, providing a compact profile suitable for dense power distribution networks.

Headers, Male Pins Feature Summary

• Four-finger beryllium copper contact technology ensures connection integrity without signal loss
• Threaded jackscrews provide secure mating retention under high vibration and shock environments
• Right-angle through-hole mounting facilitates efficient board space utilization

Headers, Male Pins Applications

• High-reliability power distribution systems requiring secure connections
• Industrial equipment operating under high vibration and shock conditions
• Board-to-cable power interfaces demanding robust mechanical retention

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Harwin documentation to confirm the presence of threaded jackscrews and right-angle orientation. Ensure compatibility with mating female connectors within the Datamate Mix-Tek series. Confirm that the 4mm pitch and 4-position configuration align with the target PCB layout and cable assembly requirements before procurement.

Headers, Male Pins Selection Notes

Select this component when high current carrying capacity and mechanical security are prioritized over low-profile constraints. The 20A rating supports substantial power loads, while the right-angle design aids in routing cables perpendicular to the board. Consider the 4mm pitch spacing requirements for trace clearance and ensure the through-hole termination method matches the manufacturing process capabilities.

Headers, Male Pins Part Context

This part belongs to the Datamate Mix-Tek series, which is engineered for high-reliability power applications. The series utilizes specialized contact technology to maintain electrical integrity in demanding environments. As a male header, it serves as the stationary interface counterpart to flexible cable assemblies, enabling robust power delivery in industrial and automotive sectors.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify cross-compatibility with existing mating components if considering alternative suppliers or pin-compatible designs from other manufacturers.
