M80-5000000M5-04-PM3-00-000

Headers, Male Pins Overview

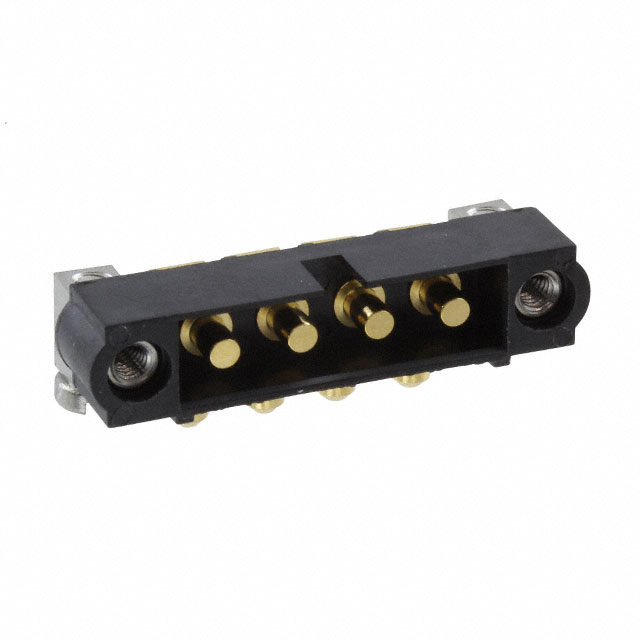

The Harwin M80-5000000M5-04-PM3-00-000 is a Datamate Mix-Tek header connector featuring four positions with a 0.157-inch (4.00mm) pitch. Designed for board-to-cable applications, it utilizes through-hole right-angle termination and includes jackscrew locking mechanisms. The contacts are gold-plated copper alloy pins rated for 40A at 800V. Constructed with black PPS insulation reinforced with glass fiber, the component operates within a temperature range of -55°C to 125°C and meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Integrated jackscrew locking mechanism provides secure mechanical retention during mating cycles.
• High-current power pin configuration supports significant electrical loads in compact form factors.
• Right-angle through-hole mounting facilitates efficient PCB layout and cable routing.

Headers, Male Pins Applications

• Industrial control systems requiring robust power distribution
• Automotive electronics harness connections
• Heavy-duty equipment interface modules

Headers, Male Pins Procurement Notes

Verify that the specific suffix codes align with required contact configurations and housing variations. Confirm that the jackscrew style matches the mating interface requirements. Ensure environmental ratings meet operational temperature extremes. Cross-reference datasheet specifications against system voltage and current constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when high current capacity and secure locking are critical for power delivery. The right-angle design optimizes space efficiency in constrained enclosures. Verify compatibility with corresponding socket connectors and mating hardware. Consider thermal management requirements given the 40A rating and enclosed housing design.

Headers, Male Pins Part Context

This part belongs to the Datamate Mix-Tek series, which combines signal and power capabilities in a single connector system. The M80-50 base indicates a standard header configuration within the broader Datamate ecosystem. This series is engineered for demanding environments where vibration resistance and reliable electrical performance are essential.

Headers, Male Pins Replacement Considerations

Compatible mating sockets include M80-4000000F2-04-PF1-00-000 and M80-400000000-04-PF2-00-000. Ensure replacement parts maintain identical pitch, locking mechanisms, and current ratings to preserve system integrity and mechanical compatibility.
