M80-5000000M5-06-PM3-00-000

Headers, Male Pins Overview

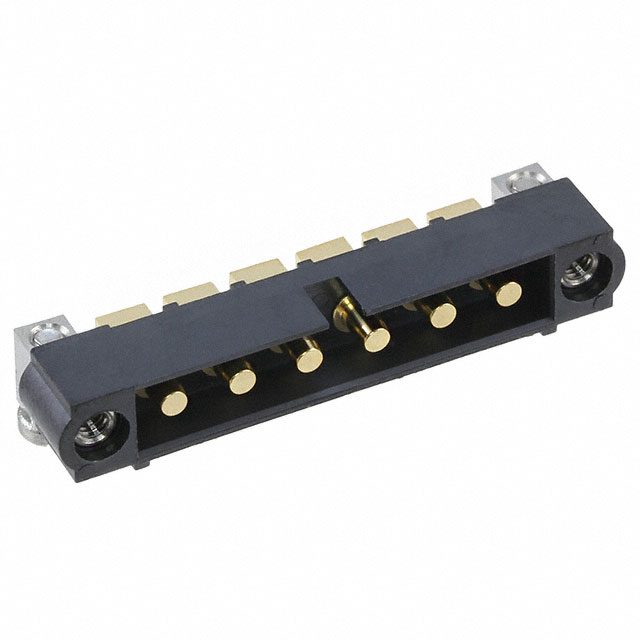

The Harwin M80-5000000M5-06-PM3-00-000 is a Datamate Mix-Tek header connector featuring six high-power male pins with a 4.00mm pitch. Designed for through-hole right-angle mounting, it utilizes gold-plated copper alloy contacts and PPS insulation. The component supports 40A current and 800V ratings, operating between -55°C and 125°C.

Headers, Male Pins Feature Summary

• Integrates high-current power contacts within a mixed-signal housing design
• Provides robust mechanical stability via internally threaded jackscrews
• Ensures reliable electrical performance through gold-plated contact surfaces

Headers, Male Pins Applications

• Industrial control systems requiring high current capacity
• Power distribution units in harsh environments
• Heavy-duty equipment interconnections

Headers, Male Pins Procurement Notes

Verify the specific pin count and termination style against project requirements before ordering. Confirm that the right-angle orientation matches the PCB layout constraints. Ensure compatibility with mating sockets from the same Datamate series to maintain proper alignment and shielding integrity.

Headers, Male Pins Selection Notes

Select this model when high current carrying capability is required alongside standard signal connections. The right-angle configuration facilitates compact board layouts. Verify thermal management needs given the 40A rating and enclosed housing design.

Headers, Male Pins Part Context

This component belongs to the Datamate Mix-Tek series, designed for mixed signal and power applications. It combines high-reliability power contacts with standard signal pins in a single housing, offering shock and vibration resistance suitable for demanding industrial and transportation sectors.

Headers, Male Pins Replacement Considerations

Compatible mating sockets include M80-4000000F2-06-PF1-00-000 and M80-400000000-06-PF2-00-000. Ensure replacement parts match the 4.00mm pitch and right-angle mounting specifications.
