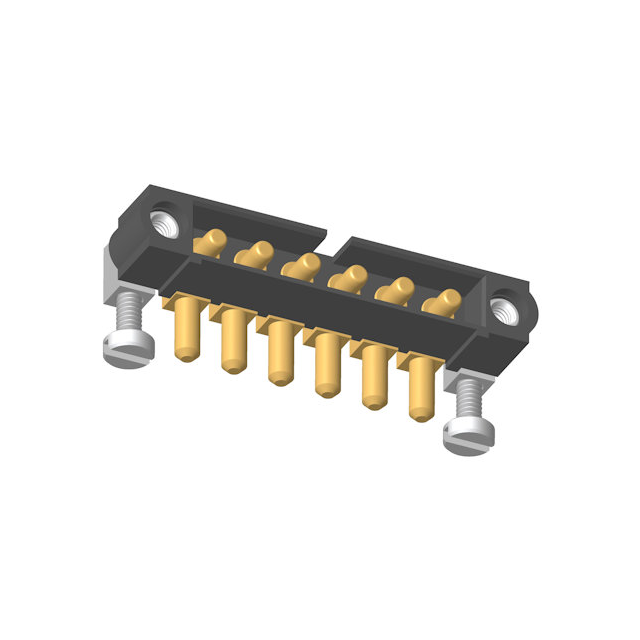

M80-5000000M5-06-PM4-00-000

M80-5000000M5-06-PM4-00-000 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 6POS 4MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M80-5000000M5-06-PM4-00-000

• Description：CONN HEADER R/A 6POS 4MM
• Series：Datamate Mix-Tek
• Mfr：Harwin Inc.
• Package：Tube
• Connector Type：Header
• Contact Type：Male Pin, Power
• Pitch - Mating：0.157" (4.00mm)
• Number of Positions：6
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Threaded
• Contact Length - Mating：-
• Contact Length - Post：0.197" (5.00mm)
• Overall Contact Length：-
• Insulation Height：0.236" (6.00mm)
• Contact Shape：Circular
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：Gold
• Contact Material：Copper Alloy
• Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
• Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
• Operating Temperature：-55°C ~ 150°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：40A
• Voltage Rating：800V

Headers, Male Pins datasheet and documents for M80-5000000M5-06-PM4-00-000
