M80-5000000M5-08-333-00-000

Headers, Male Pins Overview

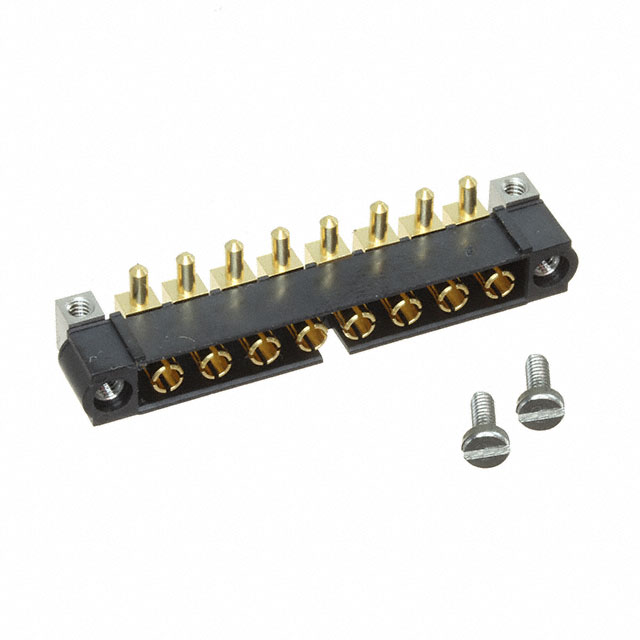

The M80-5000000M5-08-333-00-000 is a Datamate Mix-Tek male header connector manufactured by Harwin. It features an 8-position configuration with a 4 mm pitch, designed for horizontal mounting applications. The component utilizes through-hole right-angle termination and belongs to the Power to the Board series. This connector supports board power delivery and is RoHS compliant.

Headers, Male Pins Feature Summary

• Datamate Mix-Tek technology enabling mixed signal and power integration
• Horizontal mounting orientation with right-angle through-hole termination
• Robust construction suitable for demanding power delivery environments

Headers, Male Pins Applications

• Board-level power distribution systems
• Mixed signal and power interconnects
• Industrial equipment internal connections

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to ensure correct pin count and termination style. Confirm RoHS compliance status with the manufacturer prior to procurement. Check for any recent design changes or obsolescence notices directly from Harwin Inc. sources before finalizing purchase orders.

Headers, Male Pins Selection Notes

Select this component when horizontal mounting space is limited and high current capacity is required. The 4 mm pitch allows for larger contact areas compared to standard connectors. Ensure the mating socket matches the Mix-Tek specification for proper engagement and reliability in power applications.

Headers, Male Pins Part Context

This part belongs to the Harwin Datamate family, known for high-reliability interconnect solutions. The Mix-Tek variant specifically addresses needs for combining different signal types within a single connector interface. It is widely used in industrial and automotive sectors requiring robust power connections.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Cross-reference with other Harwin Datamate Mix-Tek headers if alternative positioning is needed. Verify mechanical dimensions and electrical ratings before considering any non-Harwin alternatives.
