Headers, Male Pins Overview

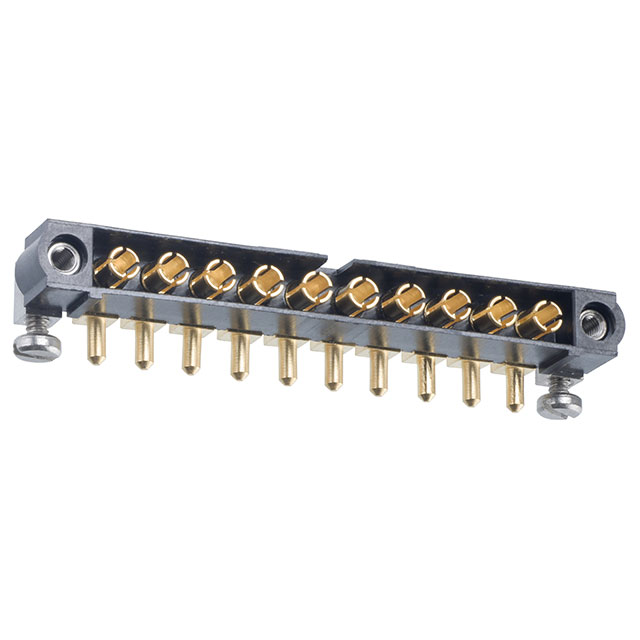

The Harwin M80-5000000M5-10-333-00-000 is a right-angle header connector from the Datamate Mix-Tek series. It features a 10-position configuration with male pins and a 4 mm pitch. The component has a black insulation color and supports a current rating of 20 A and a voltage rating of 800 V.

Headers, Male Pins Feature Summary

• Combines power and signal contacts within a single connector housing for mixed-signal applications.
• Provides high mechanical reliability with resistance to shock, vibration, and extreme temperatures.
• Utilizes a right-angle mounting style for efficient board space utilization.

Headers, Male Pins Applications

• Industrial control systems requiring mixed signal and power connections
• Telecommunications equipment with high-voltage requirements
• Automotive electronics demanding robust environmental resistance

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm pin count, contact type, and termination style. Ensure compatibility with mating sockets in the Datamate Mix-Tek family. Check RoHS compliance status and lead times through authorized distributors before procurement.

Headers, Male Pins Selection Notes

Select this part for applications needing both high-current power and low-signal transmission in a compact form factor. The 4 mm pitch allows for higher current capacity compared to standard 2 mm connectors. Verify that the mating connector supports the required 800 V isolation.

Headers, Male Pins Part Context

This component belongs to the Datamate Mix-Tek product line, which integrates power and coaxial or signal contacts. It is designed for harsh environments, offering 100G shock and 40G bump resistance. The series supports operating temperatures from -55°C to +125°C.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 10-position count, 4 mm pitch, and right-angle orientation. Compatible alternatives include other Datamate Mix-Tek headers with identical pin configurations and current ratings. Verify mating interface compatibility before substitution.
