M80-5000000M7-02-334-00-000

Headers, Male Pins Overview

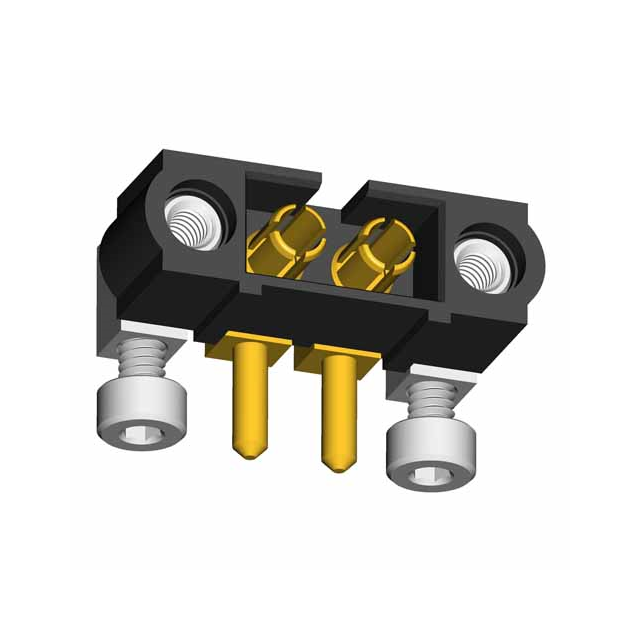

The M80-5000000M7-02-334-00-000 is a Datamate Mix-Tek header connector manufactured by Harwin Inc. It features a 2-position configuration with a 4.00mm (0.157 inch) pitch. The component utilizes a right-angle through-hole solder termination style for vertical board mounting. Designed for power distribution applications, it belongs to the Datamate series and incorporates gold-plated contacts housed within a black polyphenylene sulfide (PPS) shell.

Headers, Male Pins Feature Summary

• Right-angle through-hole solder termination for secure PCB mounting
• Gold-plated phosphor bronze contacts ensuring reliable conductivity
• Polyphenylene sulfide housing providing thermal stability

Headers, Male Pins Applications

• Power distribution in industrial control systems
• Signal routing in telecommunications equipment
• Internal connections in automotive electronics

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm contact count and termination type. Ensure compatibility with mating socket connectors within the Datamate Mix-Tek family. Confirm that the right-angle form factor meets the spatial constraints of the target printed circuit board design before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for two-wire power or signal lines. The 4.00mm pitch allows for wider spacing compared to standard 2.00mm variants, which may assist in high-voltage isolation requirements. Verify that the through-hole soldering process aligns with the assembly capabilities of the manufacturing facility.

Headers, Male Pins Part Context

This part belongs to the Harwin Datamate Mix-Tek series, designed for mixed signal and power applications. The M80 prefix indicates a specific connector family variant. The Datamate system offers modular flexibility, allowing engineers to mix different contact types and positions within a single housing structure for customized interconnect solutions.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Harwin Datamate Mix-Tek headers with identical 2-position, right-angle, through-hole specifications. Cross-brand replacements require matching the 4.00mm pitch and mechanical footprint. Verify that alternative components meet the same current carrying capacity and insulation resistance standards.
