M80-5000000MC-04-332-00-000

Headers, Male Pins Overview

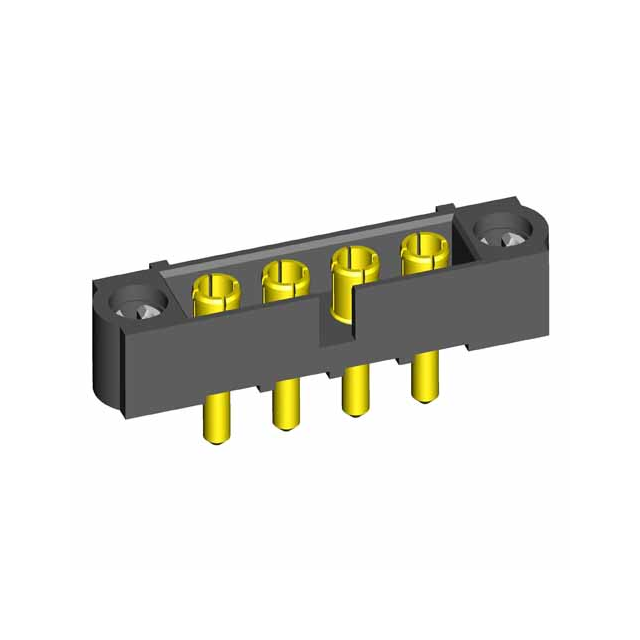

The M80-5000000MC-04-332-00-000 is a Datamate J-Tek header connector manufactured by Harwin Inc. It features a vertical through-hole mounting style with four positions and a 4mm pitch. The connector utilizes brass contacts with gold plating, rated for 20A current and 120V AC/DC voltage. Constructed from Polyphenylene Sulfide (PPS) insulation in black, it operates within a temperature range of -55°C to +125°C and meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Vertical panel mount design for secure board integration
• High current capacity suitable for power applications
• Robust PPS housing material for thermal stability

Headers, Male Pins Applications

• Industrial control panels requiring high-current connections
• Power distribution systems in electronic equipment
• Heavy-duty machinery interface modules

Headers, Male Pins Procurement Notes

Verify the specific suffix configuration against official Harwin documentation to ensure compatibility with mating components. Confirm that the 4mm pitch and panel mount style align with mechanical constraints. Check for RoHS compliance status if required by project specifications. Ensure ordering quantities match distributor availability as lead times may vary.

Headers, Male Pins Selection Notes

Select this component when high current carrying capability is essential for the application. The 4mm spacing allows for robust contact separation compared to standard 2mm connectors. Consider the panel mount orientation for space-constrained enclosures. Validate that the 20A rating exceeds the maximum expected load current under all operating conditions.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek series, known for high-reliability interconnect solutions. The M80-50 series specifically addresses power-to-board requirements with larger pin spacing. It complements other Harwin connectors by providing standardized interfaces for industrial environments demanding durability and electrical safety.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific configuration. Cross-reference with other Harwin Datamate J-Tek headers ensuring identical 4mm pitch, 4-position count, and panel mount style. Verify that any alternative maintains the same current and voltage ratings.
