M80-5000442

Headers, Male Pins Overview

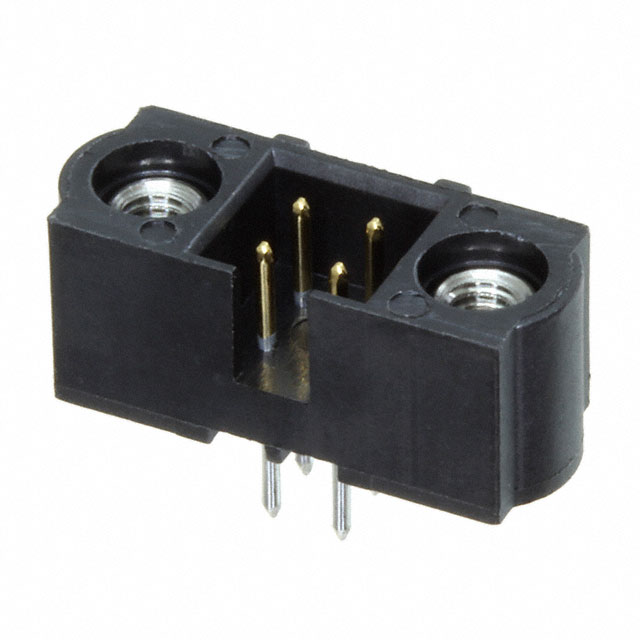

The M80-5000442 is a Datamate L-Tek male pin header designed for wire-to-board connections. It features a 2.00mm pitch and a double-row configuration with four positions. The connector utilizes a 3mm PC tail style for through-hole mounting and includes internal jackscrews for secure attachment. Constructed from Polyphenylene Sulfide (PPS) body material, it meets UL94V-0 flammability ratings. Contacts are gold-plated to ensure reliable signal transmission.

Headers, Male Pins Feature Summary

• High-reliability design utilizing four-finger beryllium copper contact technology
• Secure mechanical connection via integrated internal jackscrew mechanism
• Robust construction with PPS housing resistant to vibration and shock

Headers, Male Pins Applications

• Industrial control systems requiring high reliability
• Automotive electronics subject to vibration and shock
• Harsh environment applications with temperature extremes

Headers, Male Pins Procurement Notes

Verify the specific suffix requirements for jack screw configuration during procurement. Confirm that the internal jackscrew design aligns with the assembly constraints of the target application. Ensure compatibility with mating socket components within the Datamate L-Tek series to maintain electrical integrity and mechanical stability.

Headers, Male Pins Selection Notes

Select this component when a compact, high-density power or signal interface is required. The 2mm pitch allows for dense board layouts. Consider the internal jackscrew feature if panel-mount security is necessary without external hardware. Verify that the 3mm tail length accommodates the PCB thickness and soldering process requirements.

Headers, Male Pins Part Context

This part belongs to the Harwin Datamate L-Tek family, known for high-performance interconnect solutions. The series is engineered for demanding environments where standard connectors may fail. The M80-5000442 specifically addresses needs for secure, vibration-resistant connections in space-constrained designs.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
