M80-5000622

Headers, Male Pins Overview

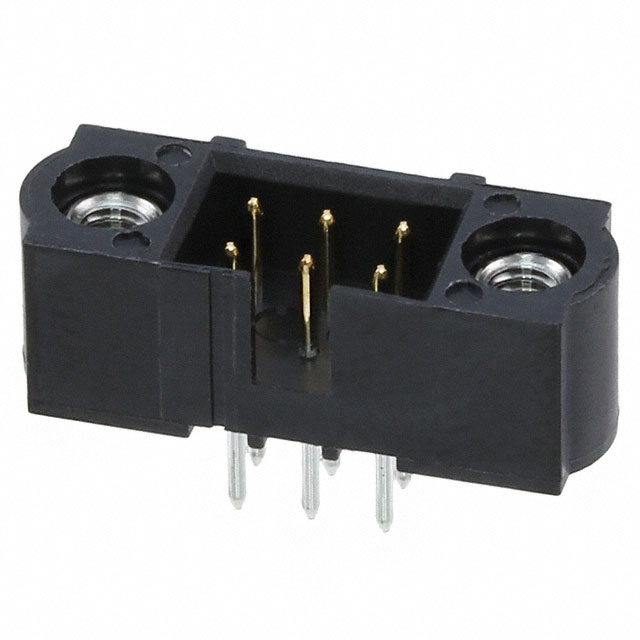

The M80-5000622 is a Datamate J-Tek wire-to-board header manufactured by Harwin Inc. It features a 6-pin configuration arranged in a dual-row layout with a 2.00mm pitch. Designed for through-hole mounting, the connector utilizes phosphor bronze contacts with tin plating. The housing is constructed from black polyphenylene sulfide (PPS) material, rated UL94 V-0 for flammability. Electrical specifications include a current rating of 3A and an insulation resistance of 100 MOhms. The operating temperature range spans from -55°C to +125°C.

Headers, Male Pins Feature Summary

• Datamate J-Tek series interconnect system
• Push-pull locking mechanism for secure mating
• Shrouded design with keying options
• Through-hole termination style

Headers, Male Pins Applications

• Industrial control systems
• Telecommunications equipment
• Automotive electronics
• Consumer appliances

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm contact plating, tail length, and keying variations. Ensure compatibility with mating sockets regarding locking mechanisms and shroud configurations. Cross-reference datasheet revisions to confirm active status and environmental compliance details before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a robust, high-current wire-to-board connection is required. The 3A rating supports moderate power applications. Verify that the board space accommodates the 2.00mm row spacing and vertical profile. Confirm that the tin-plated contacts meet the environmental requirements for the intended application environment.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for its push-pull locking capability and modular design. The M80-5000622 represents a standard vertical header variant within this series, offering reliable connectivity for various electronic assemblies requiring durable mechanical retention.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other Harwin M80-5xxxxxx series headers with matching pin counts and pitch. Verify equivalent locking mechanisms and shroud styles. Generic equivalents require careful evaluation of contact material and plating thickness to ensure comparable performance.

Headers, Male Pins FAQ

What is the locking mechanism type?

The connector uses a push-pull locking mechanism for secure attachment.

Is the connector shrouded?

Yes, the Datamate J-Tek series features a shrouded design to guide mating pins.
