M80-5000642

Headers, Male Pins Overview

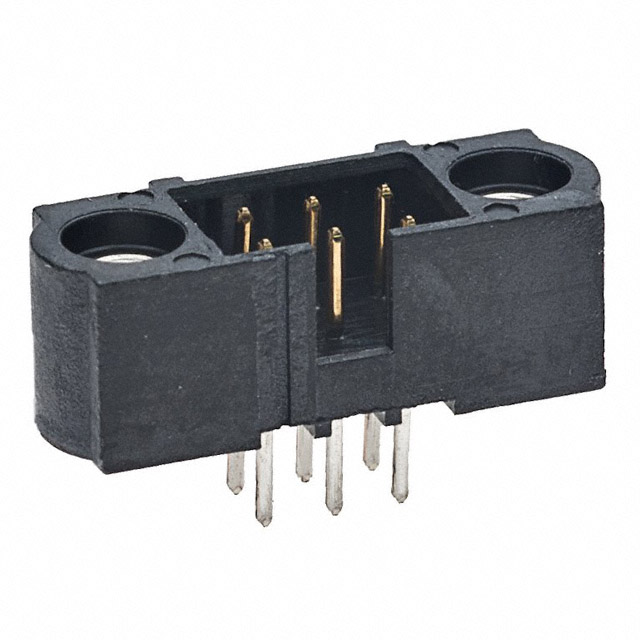

The Harwin M80-5000642 is a Datamate J-Tek male header connector designed for power-to-board applications. It features a 3+3 position configuration with a 2.00 mm pitch and a 3 mm tail form factor. The component supports a current rating of 3 A and operates within a temperature range of -55 °C to +125 °C. It utilizes through-hole solder pin termination and includes jackscrew hardware for secure mating. The housing is constructed from black Polyphenylene Sulfide (PPS), while contacts are made of Beryllium Copper with Gold plating.

Headers, Male Pins Feature Summary

• Datamate J-Tek series interconnect system
• Male pin contact type with jackscrew retention
• Vertical dual in-line layout with 3 mm tail
• Gold-plated Beryllium Copper contacts

Headers, Male Pins Applications

• Industrial control systems
• Power distribution modules
• Electronic equipment internal connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to ensure correct tail length, jack screw inclusion, and contact configuration. Confirm RoHS compliance status and REACH SVHC declarations prior to procurement. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and current production status.

Headers, Male Pins Selection Notes

Select this component when a vertical male header with mechanical locking via jackscrews is required. Ensure the design accommodates the 3 mm tail height and 2.00 mm pitch constraints. Verify that the application current does not exceed the 3 A rating per contact and that the operating environment falls within the specified temperature limits.

Headers, Male Pins Part Context

This connector belongs to the Datamate J-Tek family, which provides high-density interconnect solutions. The M80 prefix indicates a standard Datamate product line. It pairs with compatible female sockets or cable assemblies from the same series to establish reliable electrical connections in compact spaces.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin Datamate J-Tek male headers with identical 3+3 positioning, 2.00 mm pitch, and jackscrew features. Verify mechanical compatibility of the mating female counterpart before substitution.

Headers, Male Pins FAQ

Does the M80-5000642 include jackscrews?

Yes, this specific part number includes jackscrew hardware for secure connection retention.

What is the contact material for this connector?

The contacts are manufactured from Beryllium Copper with a Gold plating finish.
