M80-5000842

Headers, Male Pins Overview

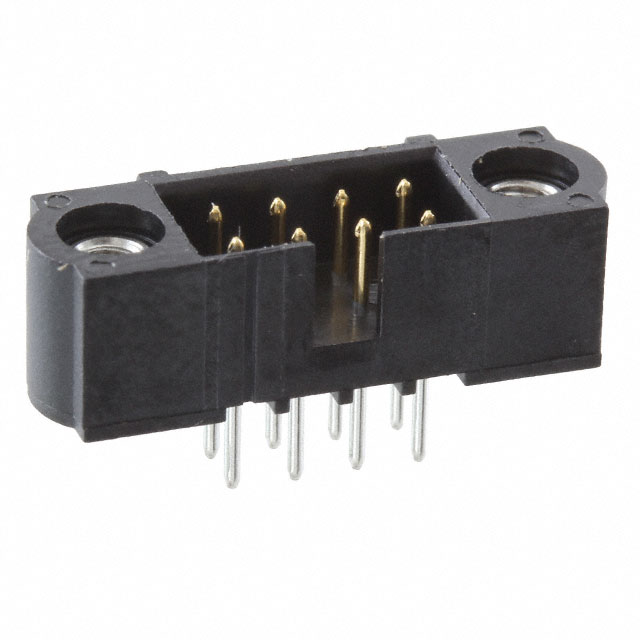

The M80-5000842 is an 8-position male header connector from the Harwin Datamate J-Tek series. It features a 2.00mm pitch and utilizes through-hole termination for PCB mounting. The connector supports board-to-board or cable-to-board applications with a rated voltage of 120V. Constructed with phosphor bronze contacts, it offers gold plating on mating surfaces and tin plating on posts. The housing is made of black glass-filled PPS, rated UL94 V-0, ensuring operation within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• High-reliability Datamate J-Tek series design with robust mechanical locking
• Gold-plated mating contacts ensure stable electrical performance in demanding environments
• Glass-filled PPS insulation provides high thermal stability and flame resistance

Headers, Male Pins Applications

• Board-to-board interconnects in industrial equipment
• Cable-to-board connections in automotive systems
• Military and aerospace electronic assemblies

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized distributors. Confirm RoHS3 compliance and REACH status prior to integration. Check for obsolescence notices as part availability may vary. Ensure storage conditions maintain moisture sensitivity level integrity before reflow soldering processes.

Headers, Male Pins Selection Notes

Select this model for applications requiring high-density interconnects with secure locking mechanisms. The 2.00mm pitch allows for compact circuit board layouts. Consider the through-hole mounting style for superior mechanical strength compared to surface mount alternatives in vibration-prone environments.

Headers, Male Pins Part Context

This component belongs to the Datamate J-Tek family, known for high reliability in harsh environments. The M80-5000842 specifically serves as a male header variant, designed to mate with corresponding female sockets. Its construction supports rigorous testing standards required for critical infrastructure and defense applications.

Headers, Male Pins Replacement Considerations

M80-5000842 is currently active. No direct public substitute part numbers are confirmed in the provided documentation. Verify pinout compatibility and mechanical dimensions when evaluating alternative connectors from other manufacturers.
