M80-5001022

Headers, Male Pins Overview

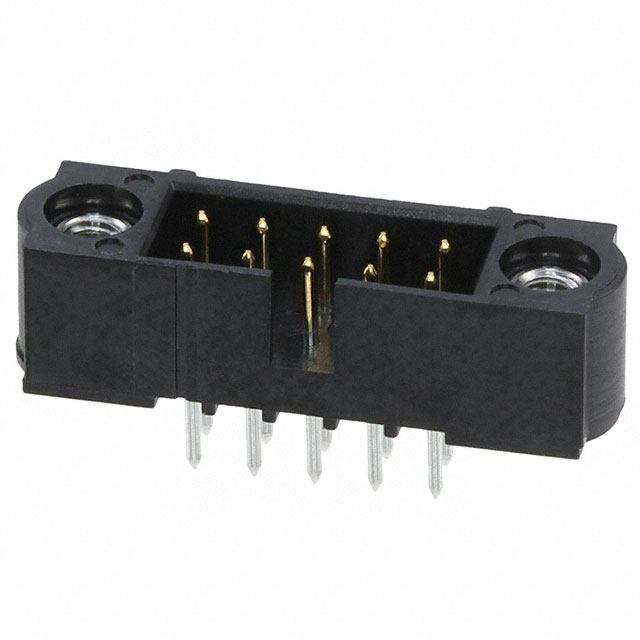

The M80-5001022 is a Datamate J-Tek male plug connector from Harwin Inc., designed for vertical through-board mounting. It features a double-row configuration with 10 positions (5+5) and a 2mm pitch. The connector utilizes internally threaded jackscrews for secure mating and includes fully shrouded, polarized mouldings to ensure correct alignment. Termination is achieved via straight PCB tails suitable for through-hole assembly.

Headers, Male Pins Feature Summary

• Double-row male plug design with 10 contacts
• Internally threaded jackscrew latching mechanism
• Fully shrouded and polarized housing for alignment
• Vertical through-board termination style

Headers, Male Pins Applications

• Industrial control systems requiring robust power or signal connections
• Automotive electronics applications
• Military equipment interconnects
• General purpose board-to-board or cable assemblies

Headers, Male Pins Procurement Notes

Verify the specific datasheet version and RoHS/REACH compliance status directly with Harwin Inc. or authorized distributors before procurement. Confirm that the jack-screw type and pin count match the design requirements. Check for any obsolescence notices or lifecycle changes associated with this part number.

Headers, Male Pins Selection Notes

Select this component when a vertical male header with secure mechanical locking is required. Ensure the mating female connector supports the 2mm pitch and jack-screw interface. Verify that the PCB layout accommodates the through-board tail dimensions and that the housing height fits within the enclosure constraints.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek series, known for high-reliability rectangular connectors. The M80-5001022 specifically serves as a male counterpart to various female receptacles in the same family, offering a standardized solution for vertical mounting applications where vibration resistance and secure connection are critical.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin Datamate J-Tek male headers with identical 10-position, 2mm pitch, and vertical through-board specifications. Ensure any replacement maintains the jack-screw latching feature and polarized housing design to guarantee proper mating and alignment.
