M80-5001042

Headers, Male Pins Overview

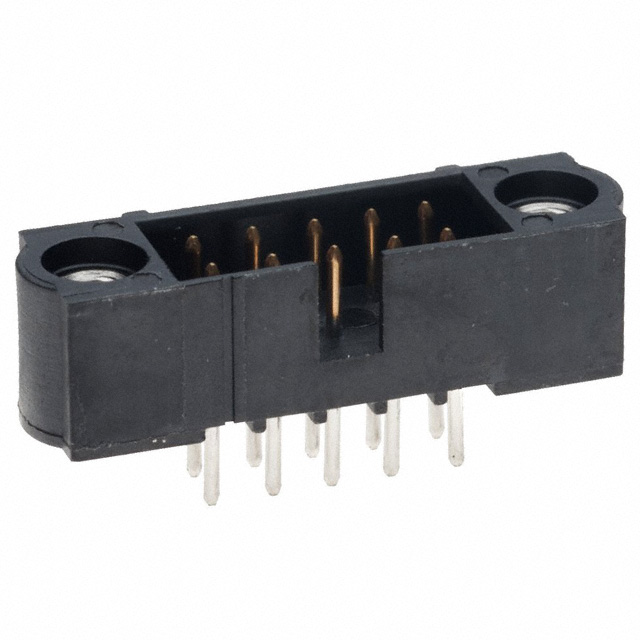

The M80-5001042 is a Datamate J-Tek series male plug connector manufactured by Harwin Inc. It features a 10-position (5+5) dual in-line configuration with a 2.00mm pitch. The housing is constructed from black UL94V-0 Polyphenylene Sulfide (PPS). Contacts are made of phosphor bronze, gold-plated, with tin over nickel termination tails. Designed for through-board mounting, it includes internally threaded jackscrews and requires no special crimping tools.

Headers, Male Pins Feature Summary

• Integrates internally threaded jackscrews for secure mating
• Supports hand or automated crimping processes
• Utilizes UL94V-0 rated PPS housing material

Headers, Male Pins Applications

• Wire-to-board interconnections
• Through-board PCB mounting
• High-reliability electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm jack-screw inclusion and contact plating specifications. Ensure compatibility with mating female receptacles within the same Datamate J-Tek family. Confirm that the required pin count matches the 5+5 configuration. Check RoHS compliance status against current manufacturing revisions.

Headers, Male Pins Selection Notes

Select this component for applications requiring robust mechanical retention via integrated jackscrews. Suitable for environments demanding high reliability without specialized tooling. Verify that the 2.00mm pitch aligns with board layout constraints. Consider the straight vertical form factor for standard through-hole assembly processes.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek line, designed for versatile connectivity. It serves as a male header for wire-to-board connections. The series emphasizes ease of use with manual or auto-crimp capabilities. It provides a reliable interface solution for various industrial and commercial electronics.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin M80-500104x variants with different contact counts or plating options. Ensure any replacement maintains the 2.00mm pitch and 10-position layout. Verify that alternative parts support the same through-board termination method.
