M80-5001422

Headers, Male Pins Overview

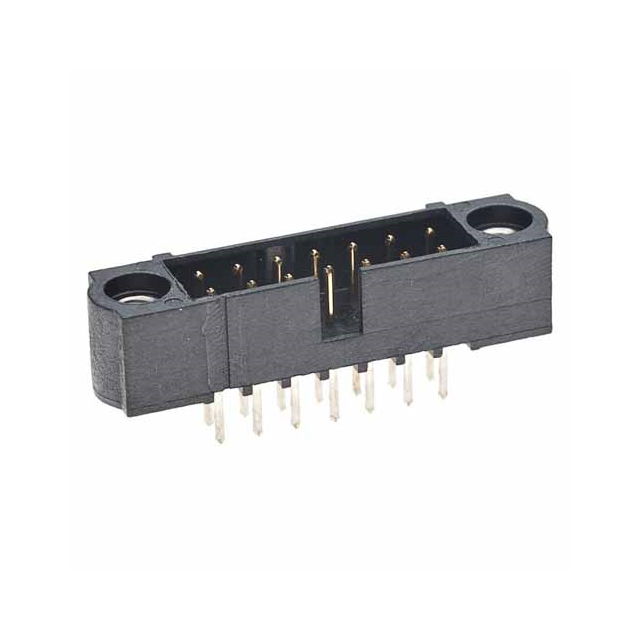

The M80-5001422 is a Datamate J-Tek series connector header manufactured by Harwin Inc. It features 14 positions arranged in two rows with a 2.00mm pitch. Designed for vertical through-hole mounting, this male pin connector utilizes phosphor bronze contacts with gold plating on the mating interface and tin-lead plating on the tail. The housing is constructed from black, glass-filled polyphenylene sulfide (PPS) rated UL94 V-0. It supports a rated voltage of 800V and operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• Vertical through-hole mounting configuration for direct board integration
• Gold-plated mating contacts ensuring reliable signal transmission
• High-temperature resistant PPS insulation material
• Integrated keying slots for precise alignment

Headers, Male Pins Applications

• Automotive electronic systems
• Industrial control equipment
• Military and defense applications

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm contact plating composition and stacking height requirements. Ensure the selected variant matches the required current rating and environmental operating conditions for the target application.

Headers, Male Pins Selection Notes

Select this component when a vertical male header with 14 pins and 2mm pitch is required. Confirm that the through-hole termination method aligns with the PCB assembly process. Verify compatibility with corresponding female sockets from the same Datamate J-Tek family.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek product line, which provides high-reliability interconnect solutions. The series is engineered to withstand vibration, shock, and extreme temperatures, making it suitable for demanding environments where consistent performance is critical.

Headers, Male Pins Replacement Considerations

Cross-reference with other Harwin M80-500xxxx variants sharing identical pin count, pitch, and mounting style. Verify mechanical dimensions and electrical ratings before substitution.
