M80-5001442

Headers, Male Pins Overview

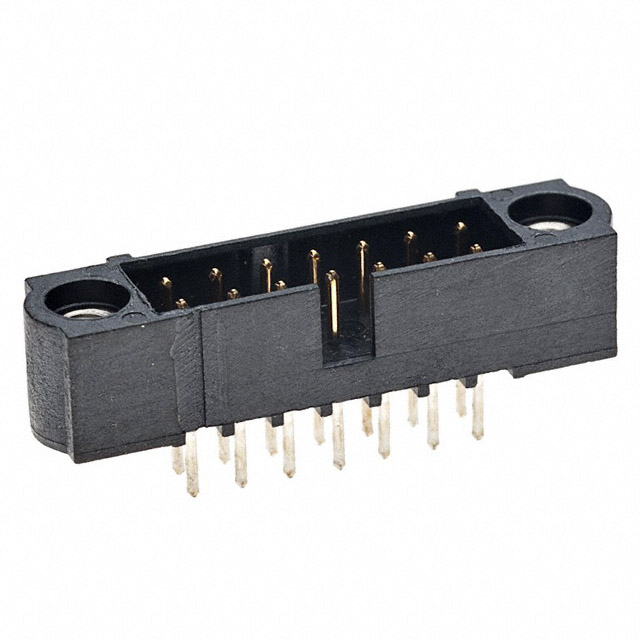

The Harwin M80-5001442 is a Datamate J-Tek series header connector featuring 14 positions in a dual-row configuration. It utilizes a 2mm pitch and is designed for vertical through-hole mounting with solder pin termination. The contacts are male pins made of phosphor bronze with tin plating, while the mating interface features gold plating. The housing is constructed from black polyphenylene sulfide (PPS) reinforced with glass fiber, rated UL94 V-0. Electrical ratings include 2.2A current and 120V voltage. Operating temperature ranges from -55°C to +125°C.

Headers, Male Pins Feature Summary

• High-reliability four-finger beryllium copper contact technology ensures connection integrity without loss
• Robust PPS housing material provides thermal stability and mechanical strength
• Integrated keying and mating flange features ensure precise alignment during assembly

Headers, Male Pins Applications

• Compact electronic assemblies requiring reliable signal connections
• Board-to-board or cable interconnects in industrial environments
• Equipment demanding high vibration resistance and durability

Headers, Male Pins Procurement Notes

Verify the specific datasheet version for the M80-5001442 to confirm exact stacking heights and hardware inclusion. Ensure compatibility with mating sockets regarding keying options and flange requirements. Cross-reference electrical ratings against application loads to maintain safety margins within the specified temperature range.

Headers, Male Pins Selection Notes

Select this component when a 14-position male header is required for vertical PCB mounting. Consider the 2mm pitch and dual-row layout for space-constrained designs. Verify that the tin-plated contact termination suits the soldering process and that the 120V rating meets circuit voltage requirements.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for high-reliability interconnect solutions. The M80-5001442 specifically addresses needs for robust signal transmission in compact form factors. Its design supports various stacking heights and hardware configurations typical of the series.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official Harwin resources for potential cross-references or alternative series members with compatible pin counts and pitches.
