M80-5001605

Headers, Male Pins Overview

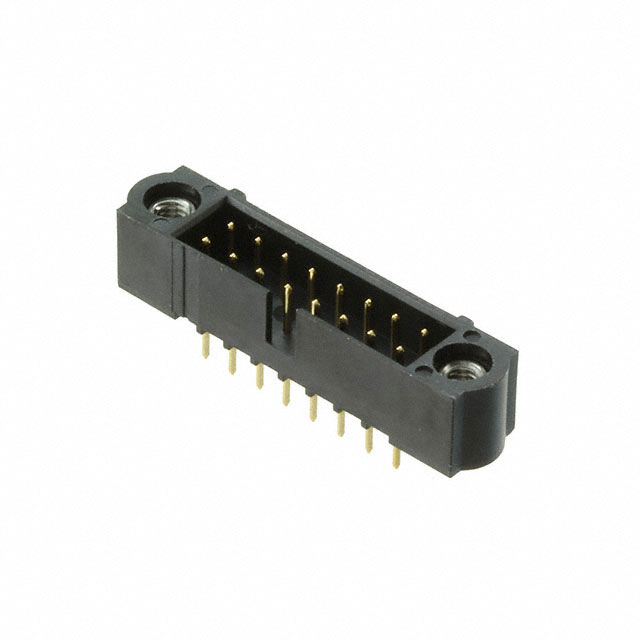

The Harwin M80-5001605 is a Datamate J-Tek rectangular connector header designed for high-reliability applications. It features a vertical through-hole mounting configuration with a 2-row, 16-position layout. The component utilizes a 2.00mm (0.079-inch) pitch and supports male pin contacts. Electrical specifications include a voltage rating of 800V and a current capacity of 2.2A. The housing is constructed from Polyphenylene Sulfide (PPS), providing robust insulation resistance of 100 MOhms. This single-ended header is engineered for secure PCB integration.

Headers, Male Pins Feature Summary

• Vertical through-hole mounting design for stable PCB integration
• High-voltage rating of 800V with 2.2A current capacity
• Polyphenylene Sulfide (PPS) housing material for durability
• Datamate J-Tek series construction for high reliability

Headers, Male Pins Applications

• Industrial control systems requiring high voltage isolation
• Medical equipment with strict reliability standards
• Automotive electronics demanding robust connections
• Test and measurement instrumentation interfaces

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required latch types or jack screws. Confirm that the 2.00mm pitch aligns with the target PCB footprint. Check datasheet details for mating connector requirements to guarantee proper electrical interface. Ensure environmental ratings meet operational temperature ranges. Validate that the 16-position count matches system connectivity needs before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when vertical orientation and high voltage isolation are critical. The 2.2A rating suits moderate power distribution tasks. Consider the PPS material properties for chemical resistance if exposed to harsh environments. Ensure the through-hole process capability exists in the manufacturing line. Compare against other Datamate variants if space constraints or different contact counts are required.

Headers, Male Pins Part Context

This part belongs to the Harwin Datamate J-Tek family, known for high-reliability interconnect solutions. The series offers various configurations including headers, sockets, and cable assemblies. The M80 prefix indicates the standard Datamate form factor. These connectors are widely used in sectors requiring durable, vibration-resistant connections. The 16-position variant provides balanced I/O density for compact designs.

Headers, Male Pins Replacement Considerations

Direct substitutes within the Datamate J-Tek series should maintain the same 2.00mm pitch and 16-position count. Verify that alternative headers share the 800V rating and PPS housing material. Ensure mechanical dimensions match the existing PCB layout. Cross-reference mating socket part numbers to confirm interface compatibility. Do not substitute with non-Datamate series components without full validation.
