M80-5002022

Headers, Male Pins Overview

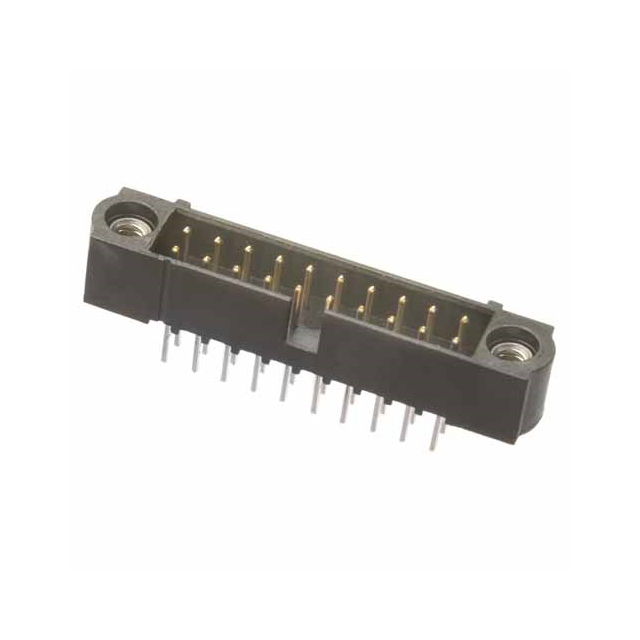

The Harwin M80-5002022 is a Datamate J-Tek series male header connector designed for vertical through-board mounting. It features a 20-position configuration (10+10) with a 2mm pitch and 2mm row spacing. The contacts are phosphor bronze with a gold finish, housed in black Polyphenylene Sulfide (PPS). It includes internally threaded jackscrews for secure mating. Termination pins have a tin/lead finish and a 3mm tail length. Rated for 3A current and 800V AC/DC, it operates between -55°C and +125°C.

Headers, Male Pins Feature Summary

• Integrates internally threaded jackscrews to ensure positive mechanical locking during mating.
• Utilizes shrouded housing design to provide alignment and protection for the contact array.
• Employs gold-plated phosphor bronze contacts to maintain reliable electrical conductivity.

Headers, Male Pins Applications

• Industrial control system interconnections
• Power distribution modules
• Embedded electronic equipment

Headers, Male Pins Procurement Notes

Verify the specific termination plating and jack screw inclusion against the official datasheet, as suffix variations exist within the M80 series. Confirm RoHS compliance status directly with the manufacturer documentation. Ensure the required PCB hole dimensions match the 3mm tail specification for proper through-hole assembly.

Headers, Male Pins Selection Notes

Select this component when a vertical male header with secure mechanical locking is required. The 2mm pitch suits high-density layouts. Verify that the 3A current rating and 800V voltage limit align with the circuit requirements. Consider the operating temperature range of -55°C to +125°C for environmental suitability.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, characterized by its robust jackscrew locking mechanism and compact 2mm pitch. It is categorized under Power Connectors and Headers & Wire Housings. The series is engineered for demanding applications requiring reliable power-to-board connections with high cycle durability.

Headers, Male Pins Replacement Considerations

Compatible mating receptacles include Harwin part numbers such as 952-1298, 952-1059, and 952-1043. These counterparts share the same 2mm pitch and jackscrew interface specifications.

Headers, Male Pins FAQ

What is the contact material used in this connector?

The contacts are made from phosphor bronze with a gold finish.

Does this connector include jackscrews?

Yes, the M80-5002022 is fitted with internally threaded jackscrews for secure attachment.
