M80-5002042

Headers, Male Pins Overview

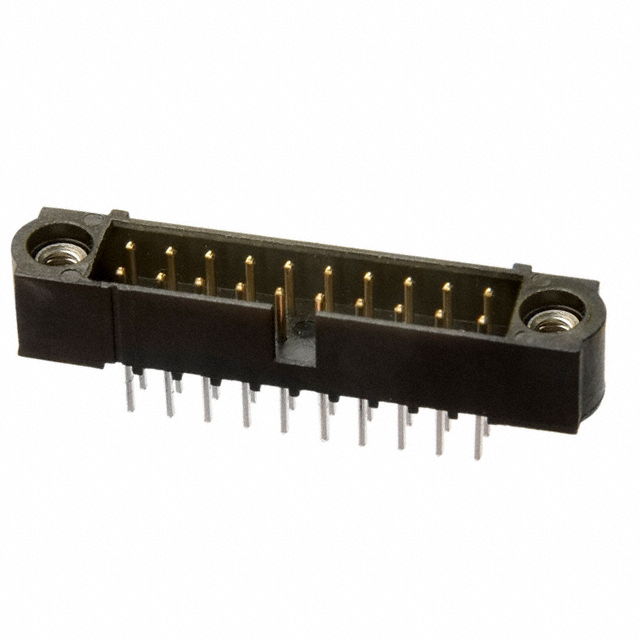

The M80-5002042 is a Datamate J-Tek series PCB header featuring 20 positions in a dual-row configuration with a 2 mm pitch. It utilizes male pin contacts made of phosphor bronze, gold-plated for the mating interface and tin-plated for the tail. The housing is constructed from black PPS material rated UL94 V-0. Designed for through-hole mounting, it supports board-to-board and wire-to-board connections with a rated voltage of 120V and current capacity of 3A. Operating temperatures range from -55°C to 125°C.

Headers, Male Pins Feature Summary

• High-density interconnect capability via compact 2mm pitch dual-row design
• Selective contact plating ensures reliable signal transmission and solderability
• Robust thermal stability supported by high-performance PPS insulation

Headers, Male Pins Applications

• Automotive electronic systems
• Industrial control equipment
• Military and defense electronics

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm orientation and tail length specifications. Ensure compatibility with mating receptacles within the Datamate J-Tek ecosystem. Cross-reference environmental ratings and material certifications required for your specific application standards before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a vertical through-hole male header is required for high-density applications. Consider the 3A current rating and 120V limit for circuit design. Evaluate the 2mm pitch constraints against available PCB space. Confirm that the gold/tin selective finish meets corrosion resistance and soldering requirements for the intended environment.

Headers, Male Pins Part Context

This connector belongs to the Datamate J-Tek family, known for robust performance in demanding environments. The M80 series specifically offers versatile mounting options and high reliability. This model represents a standard vertical header variant, providing a stable mechanical connection for critical signal and power distribution tasks in compact assemblies.

Headers, Male Pins Replacement Considerations

M80-5002042-ND
