M80-5002622

Headers, Male Pins Overview

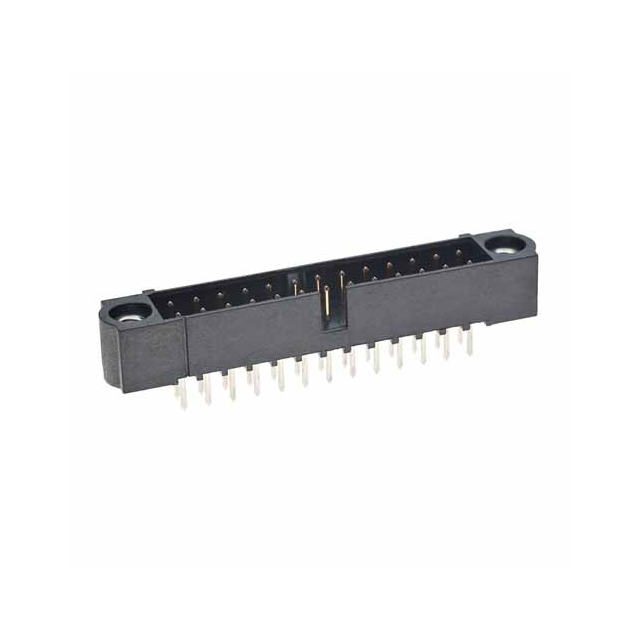

The Harwin M80-5002622 is a Datamate J-Tek series power-to-board connector designed for vertical throughboard mounting. It features a male pin configuration with 26 positions (13+13) arranged in a double-row layout. The component utilizes a 2 mm pitch and includes internally threaded jackscrews for secure mating. Electrical ratings include a current capacity of 3 A and a voltage rating of up to 800 VAC/DC, depending on the specific contact arrangement. The housing is constructed from black Polyphenylene Sulfide (PPS), providing thermal stability within an operating temperature range of -55°C to +125°C. Contact materials vary by variant, typically utilizing phosphor bronze or brass with gold plating.

Headers, Male Pins Feature Summary

• Incorporates internally threaded jackscrews for robust mechanical retention during mating cycles.
• Vertical throughboard installation style facilitates direct PCB integration with standard solder pin termination.
• High-density double-row architecture maximizes contact count within a compact 2 mm pitch footprint.

Headers, Male Pins Applications

• Industrial control systems requiring reliable high-current interconnects.
• Power distribution modules in electronic equipment.
• Automotive electronics interfaces demanding secure board-to-board connections.

Headers, Male Pins Procurement Notes

Verify the specific suffix code against the manufacturer datasheet to confirm terminal material and plating specifications, as variants exist with different contact compositions. Ensure the selected part matches the required jack screw length and tail dimension for the target PCB thickness. Cross-reference the RoHS status and REACH SVHC declarations with the latest official documentation prior to procurement to ensure regulatory compliance for the intended market.

Headers, Male Pins Selection Notes

Select this component when a vertical male header with integrated jackscrews is required for high-reliability applications. Confirm that the 2 mm pitch aligns with the mating socket spacing. Evaluate the 3 A current rating against the total load requirements of the circuit. Consider the PPS housing material for its inherent flame retardancy and thermal resistance properties suitable for environments exceeding standard plastic connectors.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, a modular connector system known for its versatility in power and signal applications. The M80 prefix indicates a standard header configuration within the Harwin portfolio. These connectors are engineered for harsh environments, offering durability through metal jackscrew engagement and robust polymer housings, distinguishing them from standard unsecured PCB headers.

Headers, Male Pins Replacement Considerations

Direct substitutes are limited due to the proprietary jackscrew mechanism. Compatible alternatives must match the 2 mm pitch, 26-position count, vertical orientation, and male contact type. Verify that any replacement offers equivalent current/voltage ratings and similar thermal performance characteristics.
